Lock in real foot control on your Ultra Bee. This V2 foot brake kit gives you a true dirt bike pedal feel, keeps your left hand free, and delivers confident stopping power when the trail gets steep and rough. Built from real materials that last and designed around the Ultra Bee platform so install is straight forward and the result is solid.
True moto pedal feel with the V2 foot brake design that fixes earlier issues with master cylinder blowouts and lever interference.
Dual caliper bracket lets you run a foot brake and keep your hand brake.

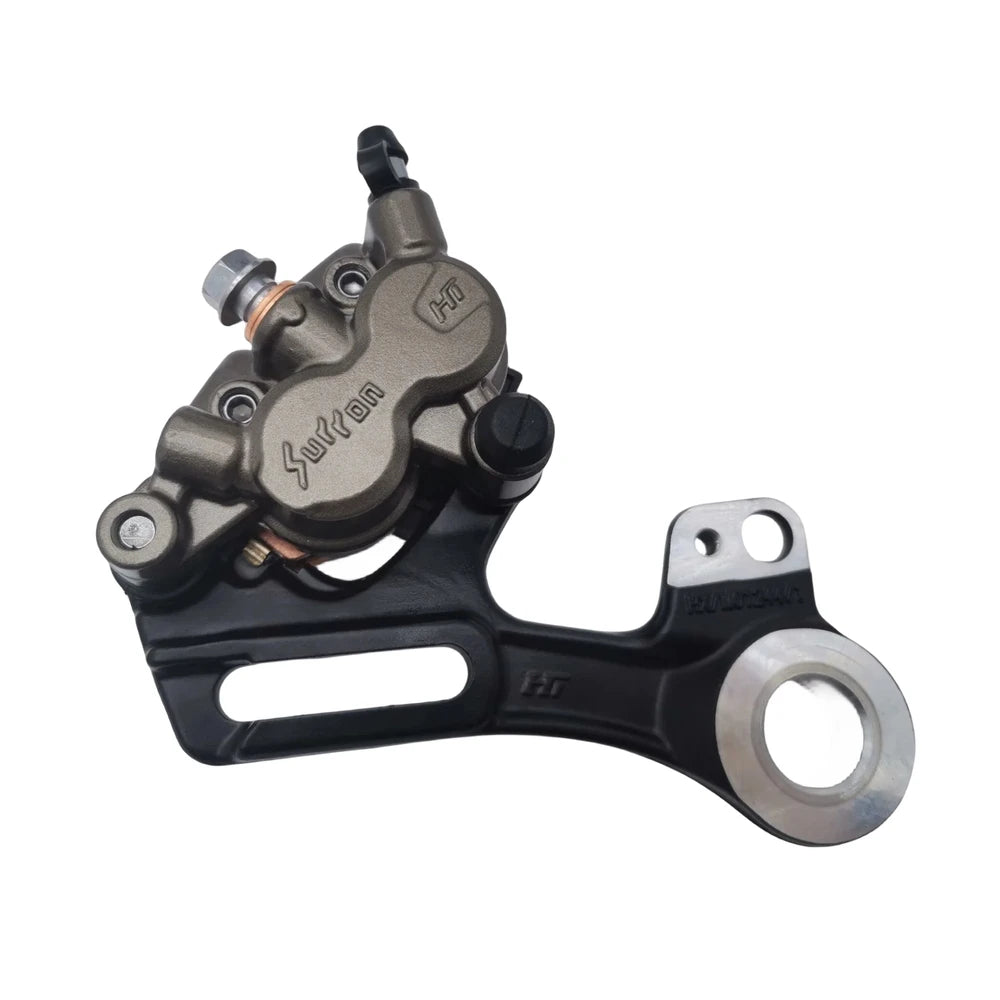

Includes an OEM Ultra Bee rear caliper for a complete setup.
Aerospace grade 6061 T6 aluminum components for strength without excess weight.
Designed around the stock 240mm rear rotor for clean fitment.
Pre Bled option available to speed up your install.

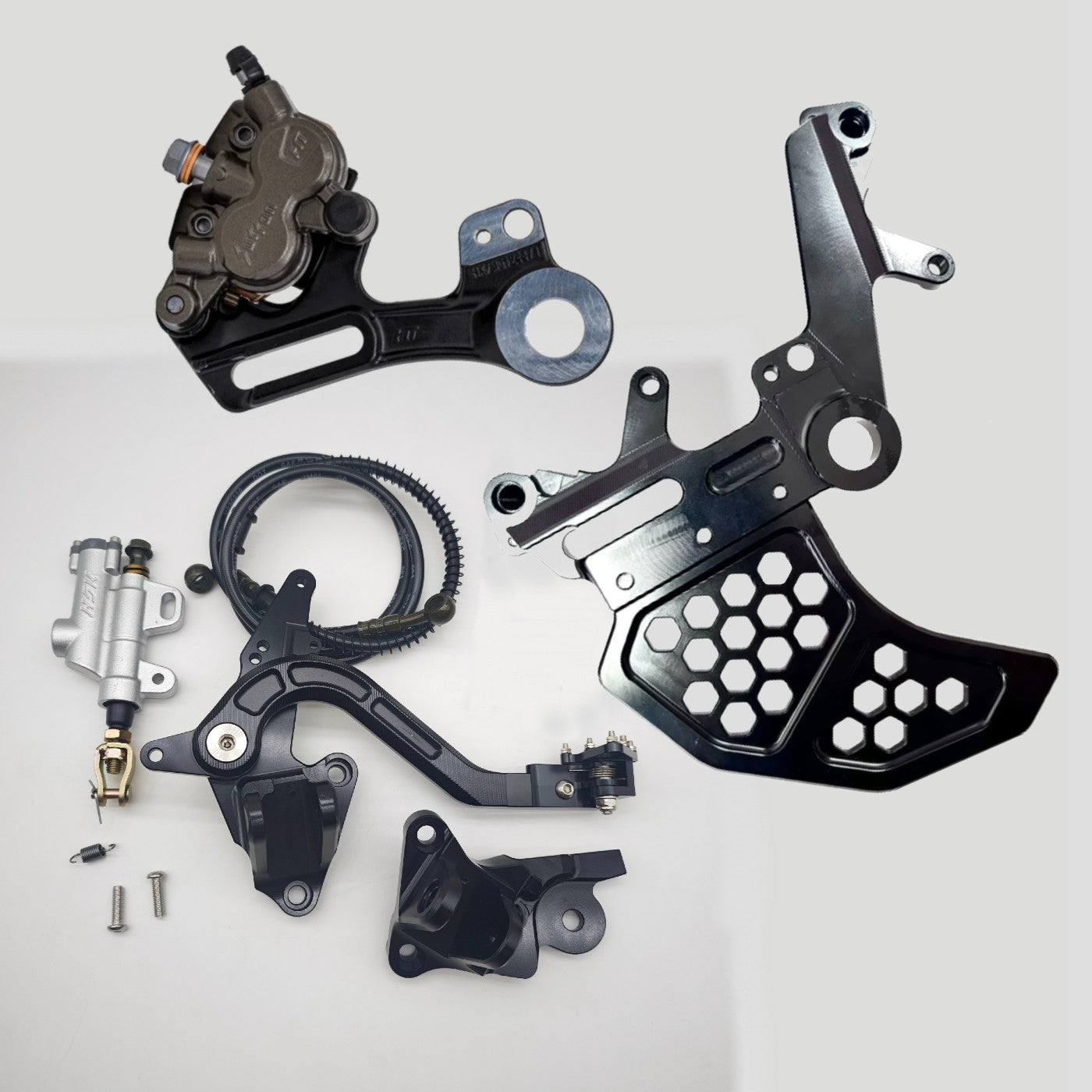

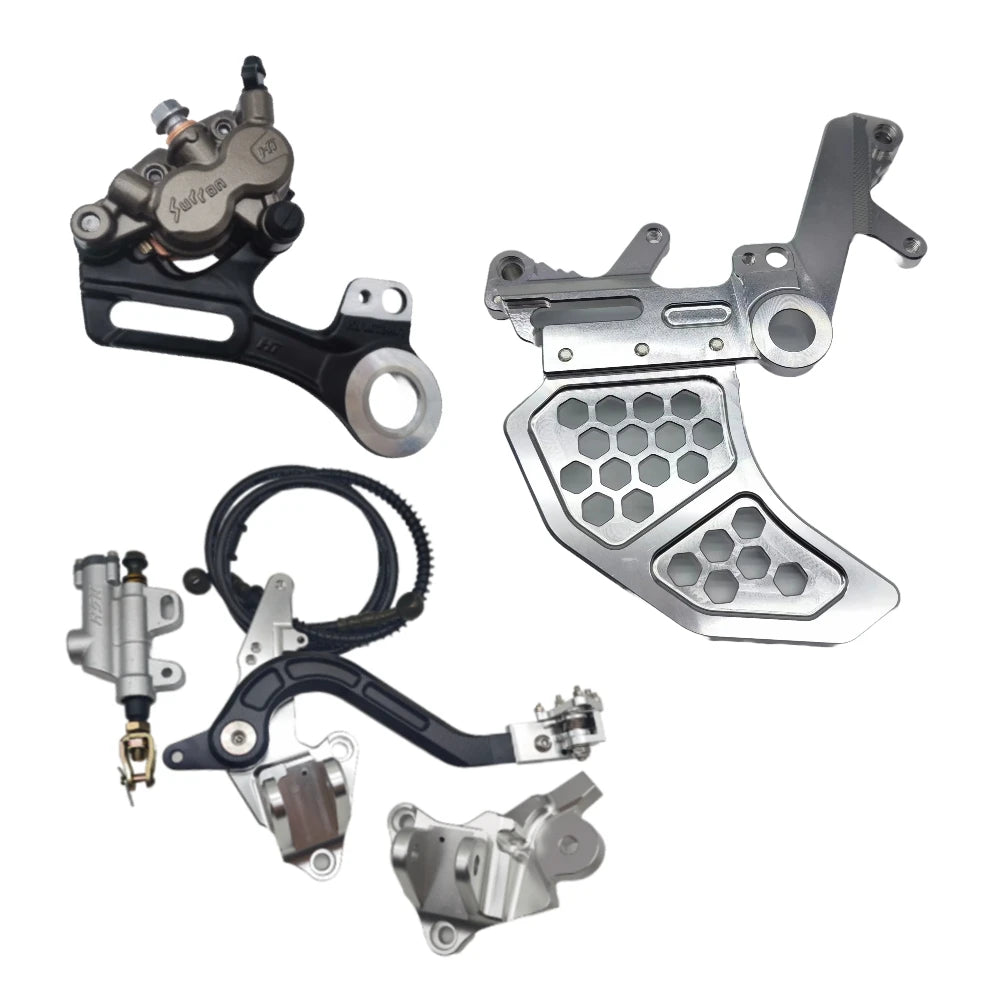

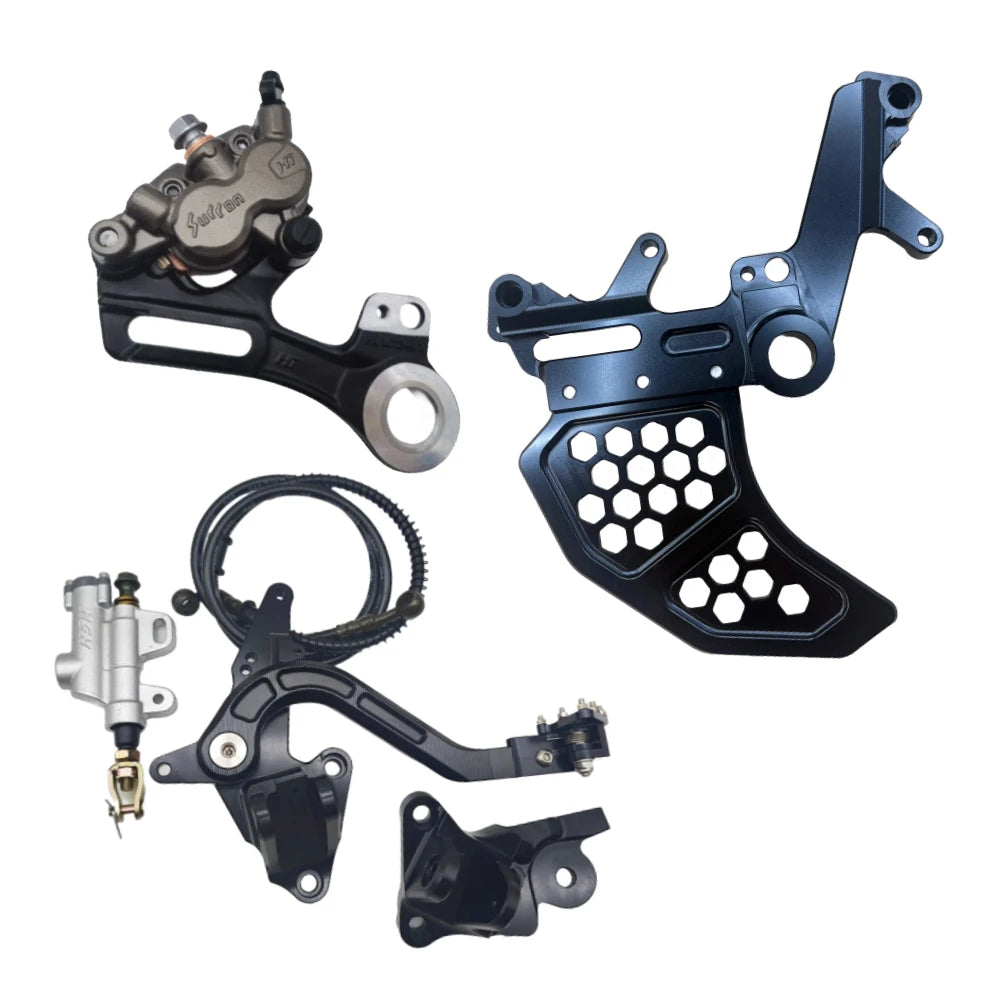

| Item | What you get |
|---|---|

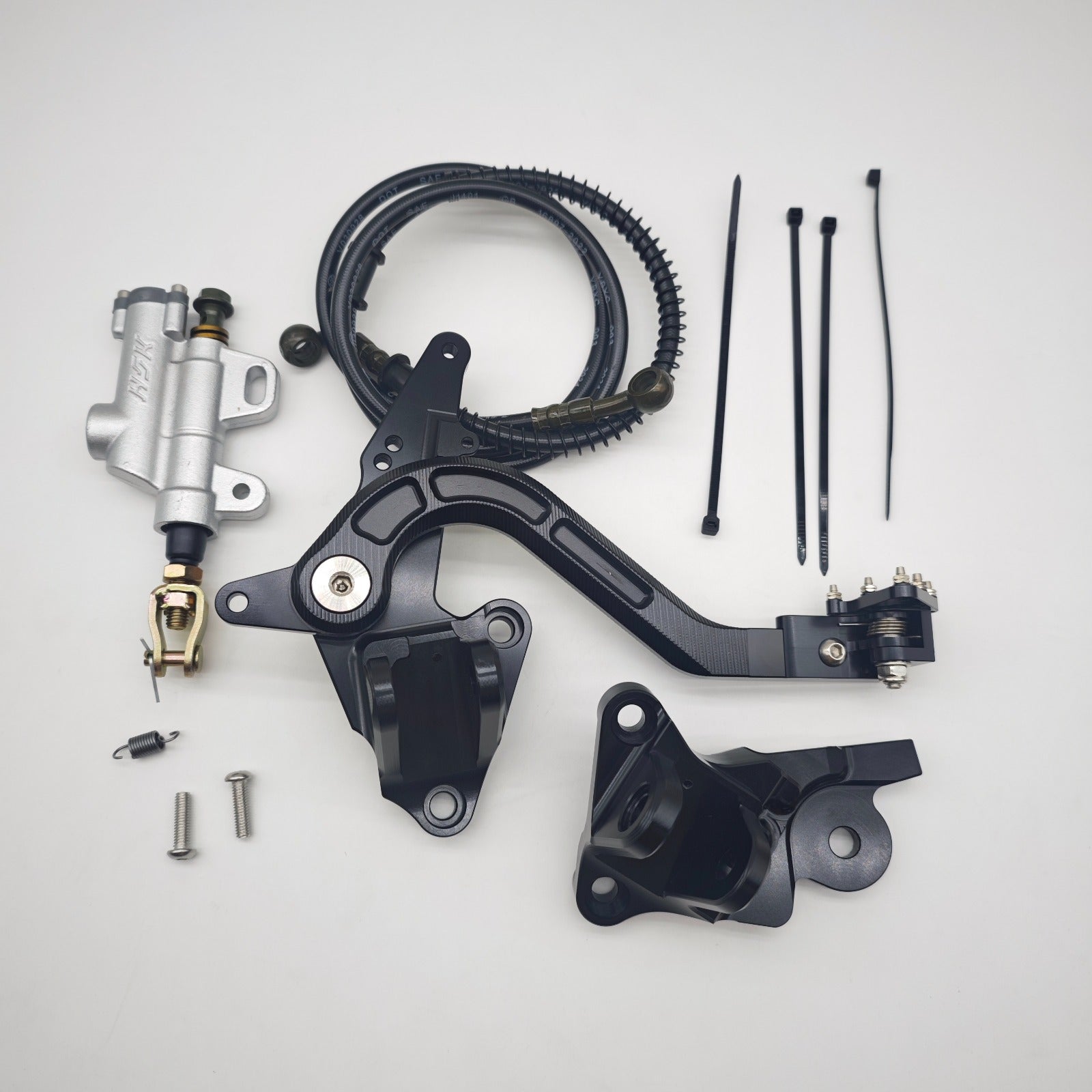

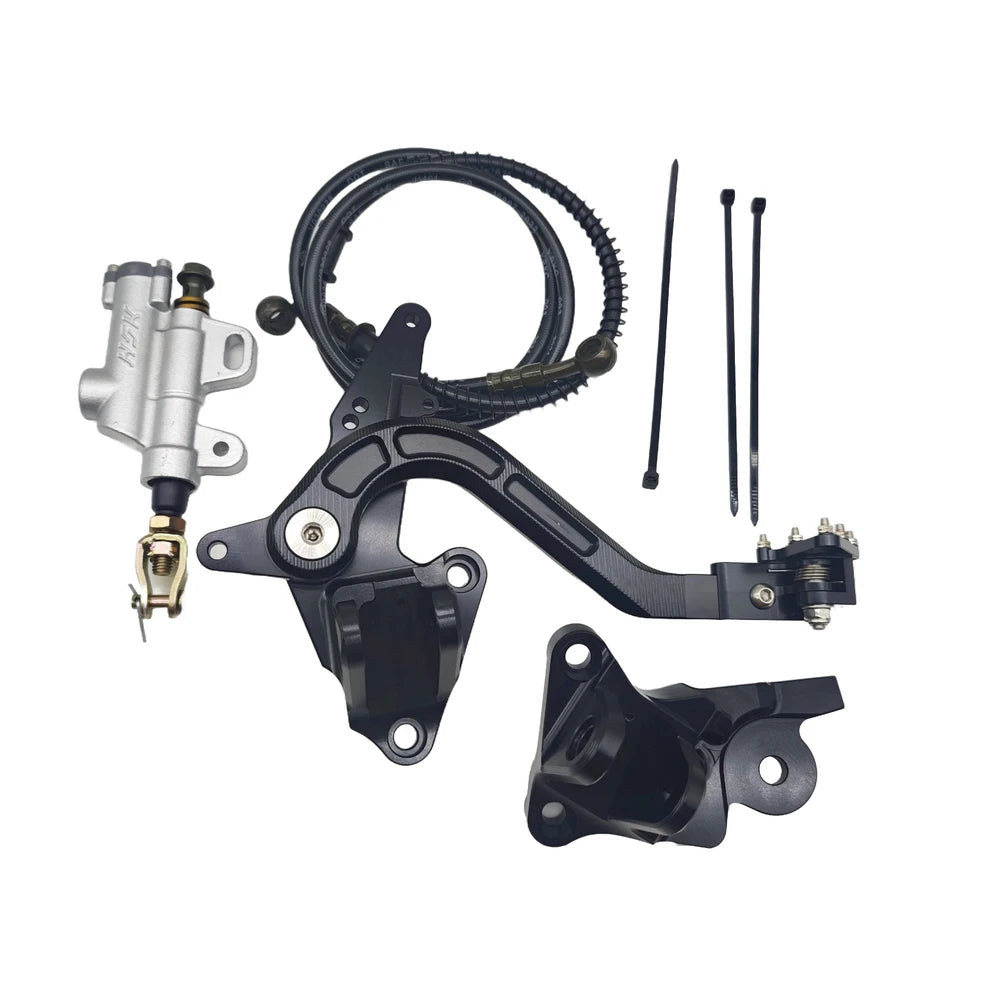

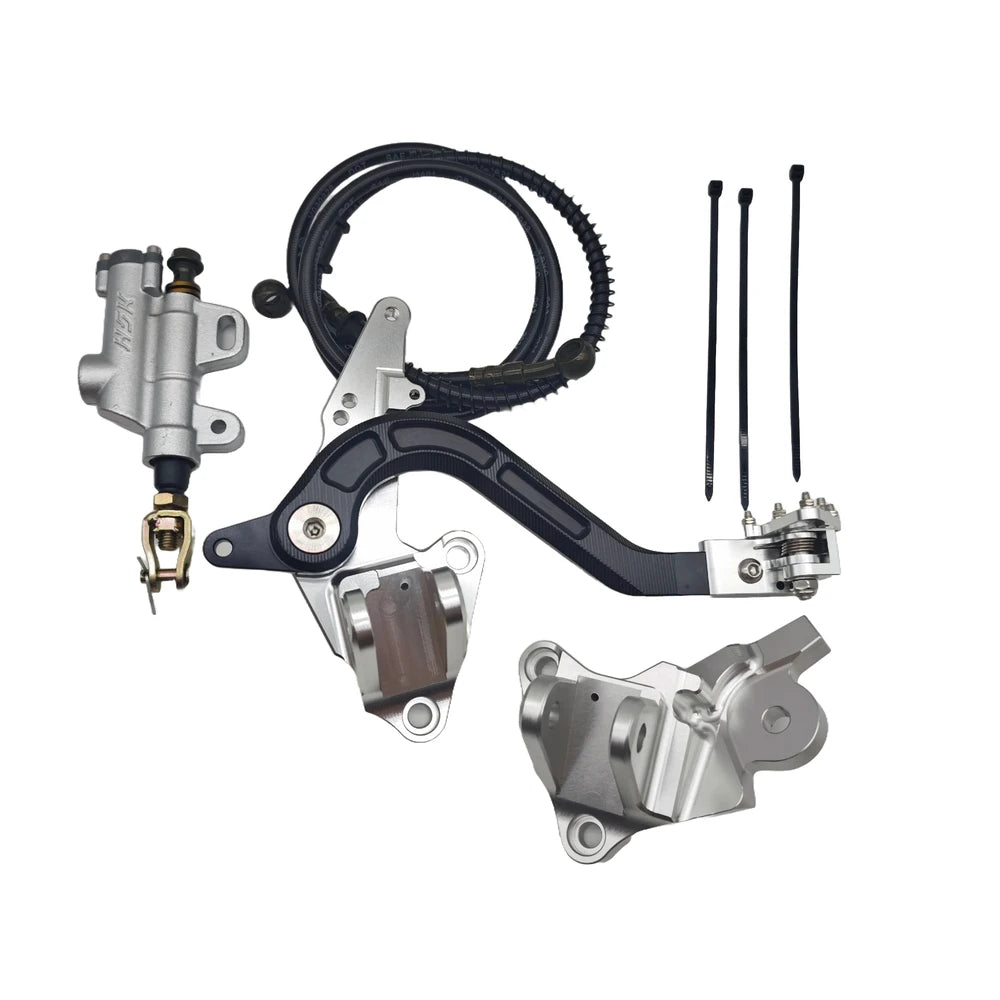

| Foot Brake | V2 pedal and master cylinder assembly |
| Rear Caliper | OEM Ultra Bee caliper included |

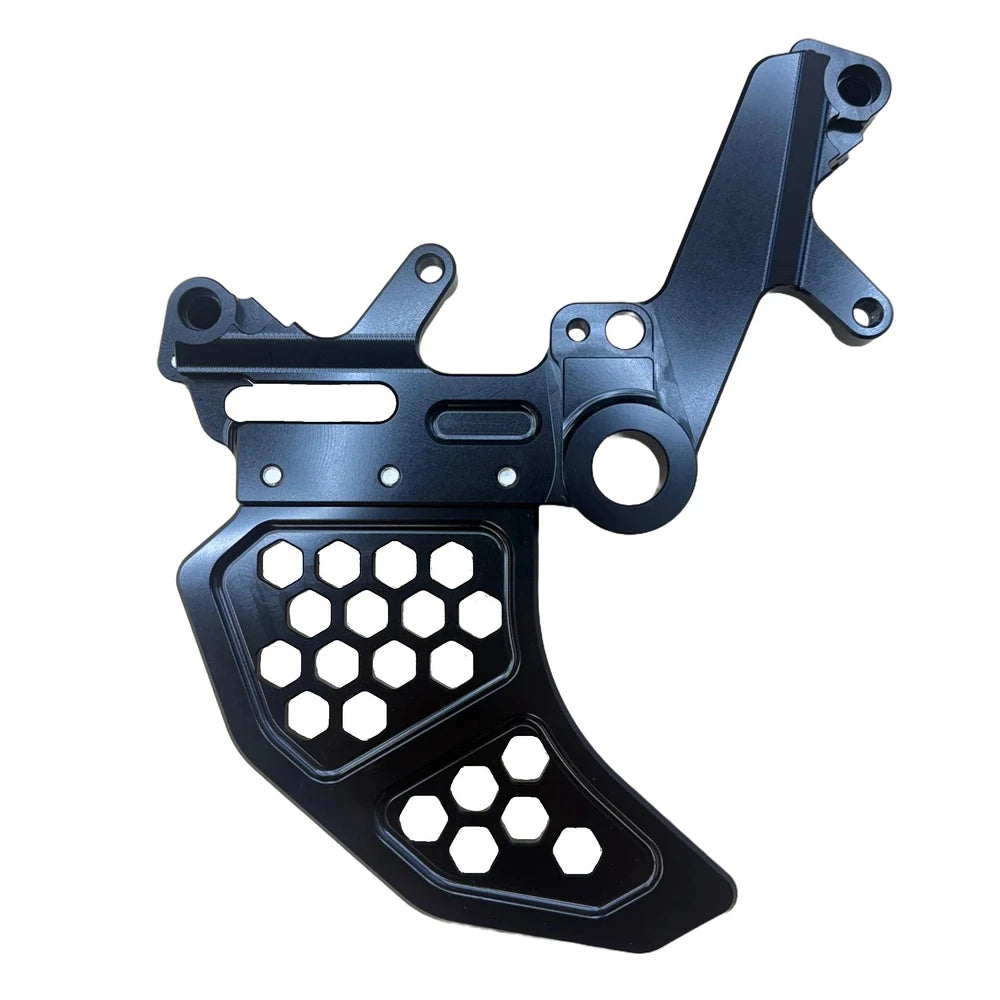

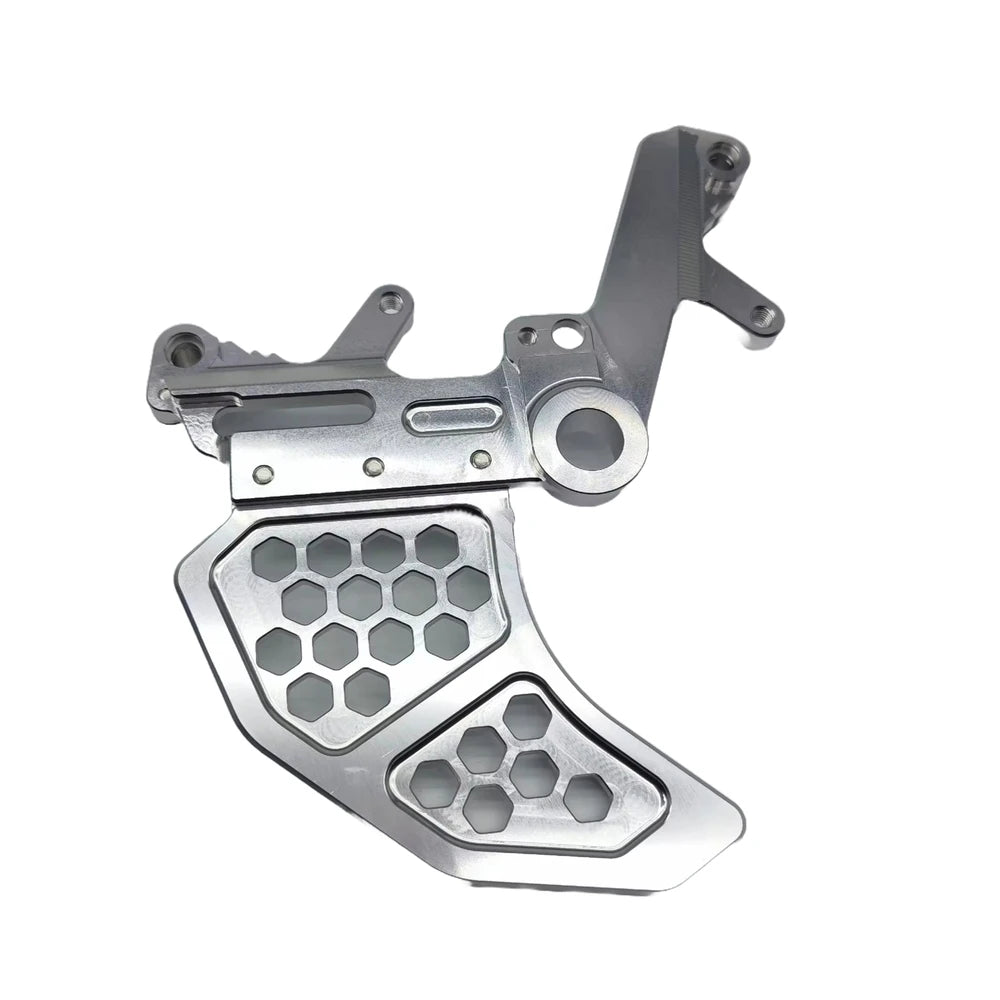

| Bracket | Dual caliper bracket for hand and foot brake |
| Brake Line | Foot brake line sized for Ultra Bee |
| Peg Hardware | CNC left side peg bracket color matched to the foot brake |
| Material | 6061 T6 aluminum across bracket and peg hardware |
| Rotor Fit | Works with stock size 240mm rear rotor |
| Finish Options | Black or Silver |
| Bleed Option | Pre Bled or Not Bled |
Bike fitment: Surron Ultra Bee all years.
Rotor fitment Built around the OEM 240mm rear rotor size. Take a look at the Surron Ultra Bee Big Brake kit to run a 270mm rear rotor!
Put the bike on a stable stand. Remove the rear wheel and the stock rear caliper from the mount.
slide the dual caliper bracket onto the swingarm. Make sure the bracket seats fully and hardware is torqued to the OEM spec.
Then re-install your rear wheel & axle. Torque to spec.
Install the CNC left peg bracket. Mount the foot brake pedal and master cylinder assembly.
Does this keep my OEM Hand rear brake?
Yes. The dual caliper bracket is built for a hand and foot setup so you can keep your lever and add a pedal.
Do I need to buy an extra caliper?
No. The kit includes one OEM Ultra Bee rear caliper. You reuse your stock caliper for the hand brake and add the included caliper for the foot brake.
What rotor size does this require?
It is designed around the 240 mm rear rotor which is the stock size for the Ultra Bee.
Will this work with a 270 mm rear rotor?
Not with this bracket. You would need a our Big Brake bracket + rotor
Is the kit available Pre Bled?
Yes. Choose Pre Bled if you want a quicker install.
Ships from USA!
