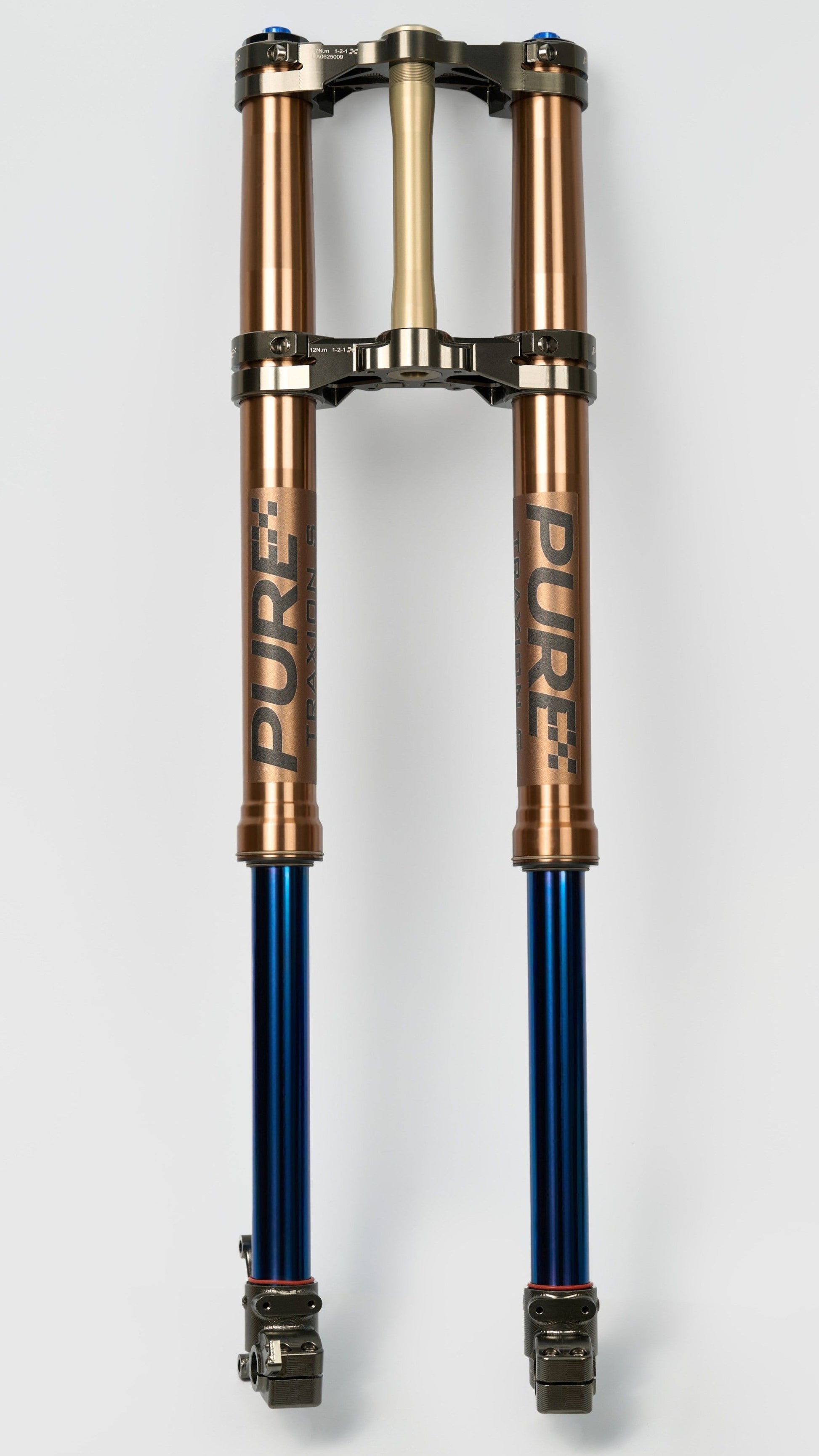

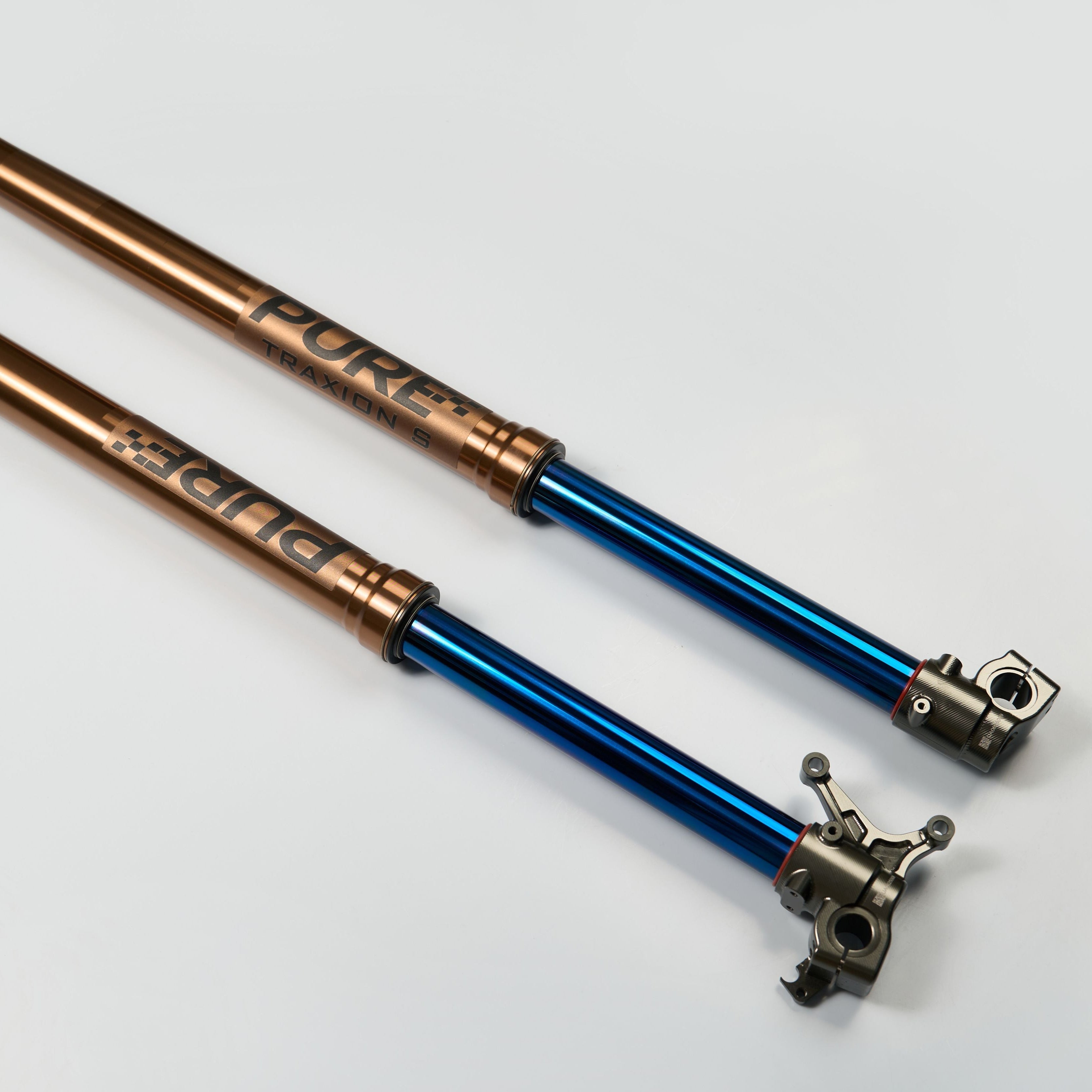

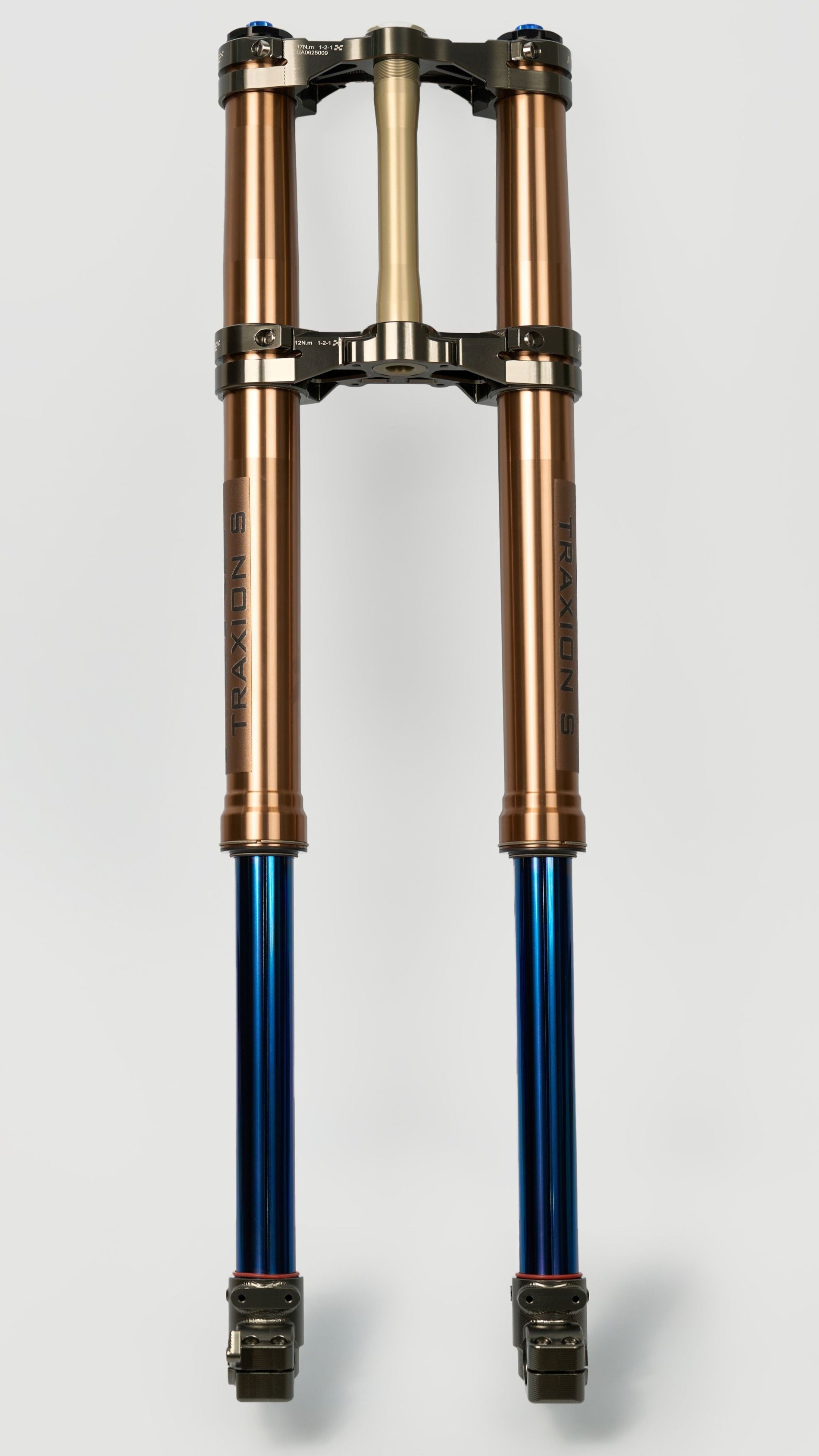

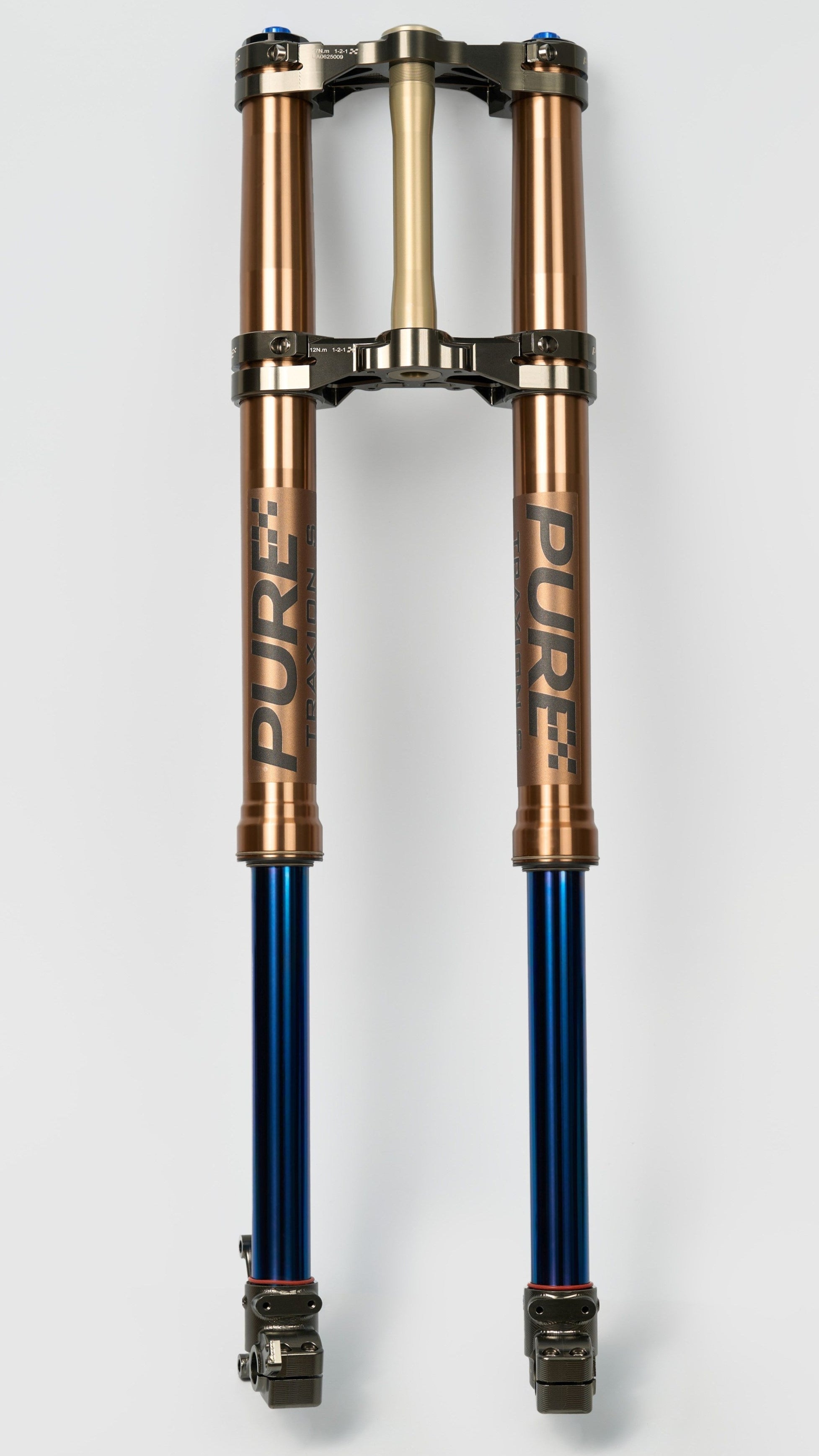

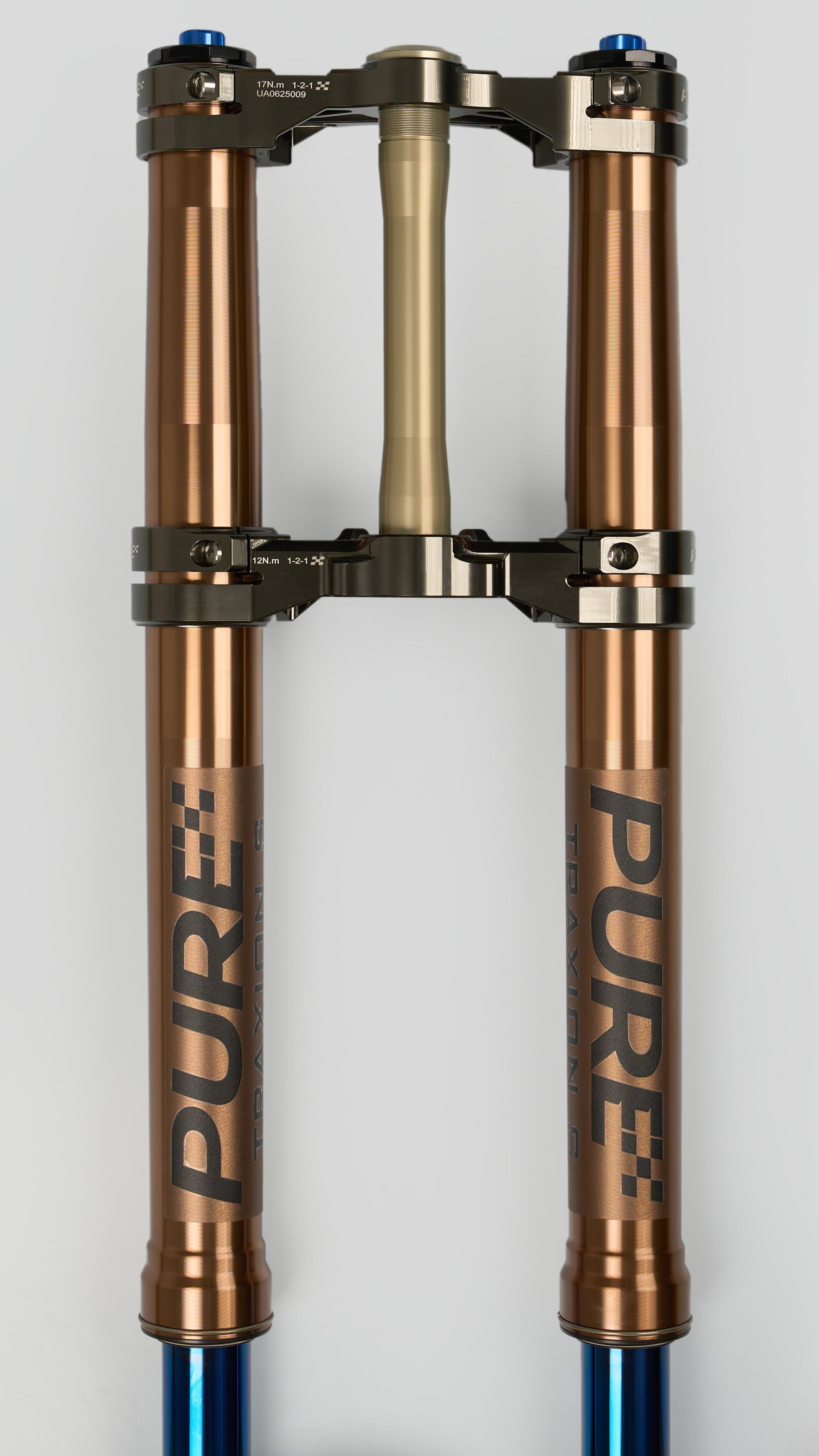

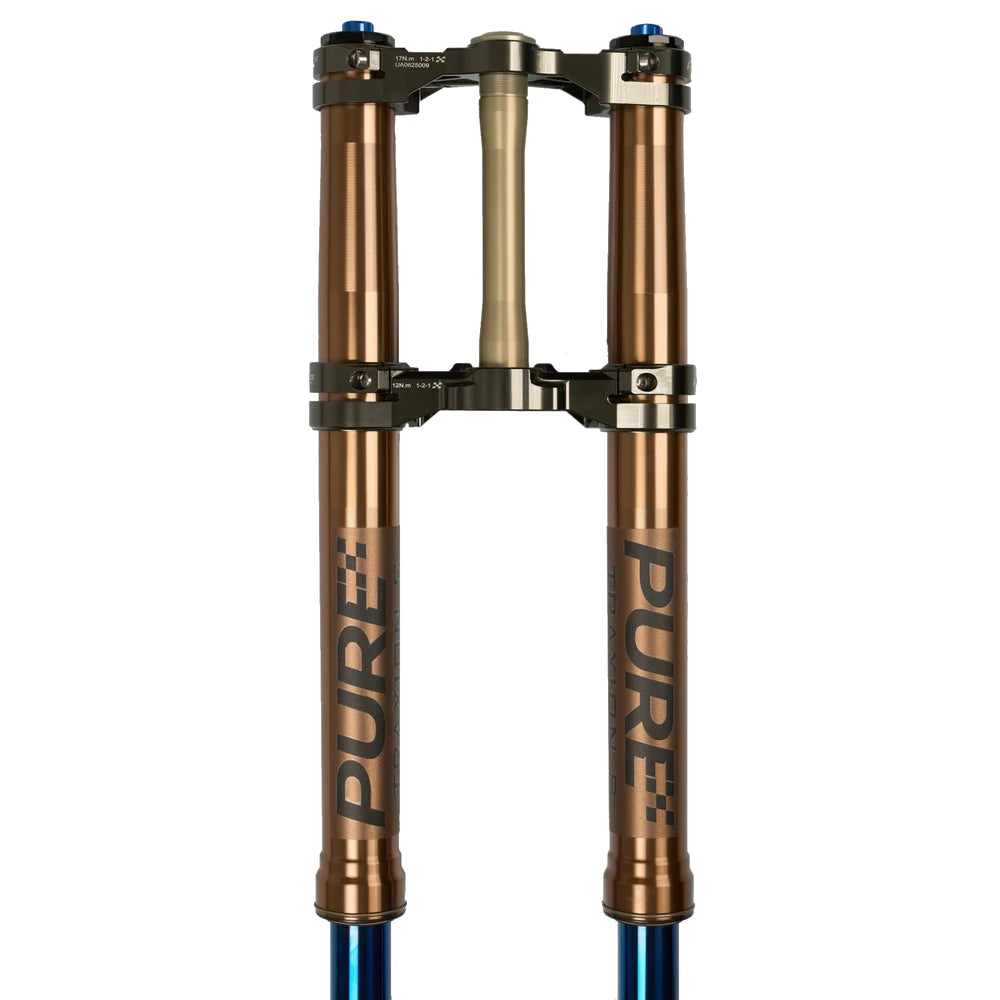

TRAXION S | TiAlN | 260 mm Travel

PURE Racing introduces the innovative TRAXION S fork, developed through the dedicated efforts of German engineers and designers. Collaborating with leading suspension manufacturing specialists, PURE Racing delivers exceptional quality combined with aerospace-grade materials to ensure top-tier performance.

• Precision-honed inner cylinders with a ±0.01 mm tolerance, delivering exceptionally smooth damping and enhanced traction.
• TiAlN (Titanium Aluminium Nitride) stanchion coating offers micro-level smoothness, superior lubrication, outstanding wear and scratch resistance, and excellent thermal stability.

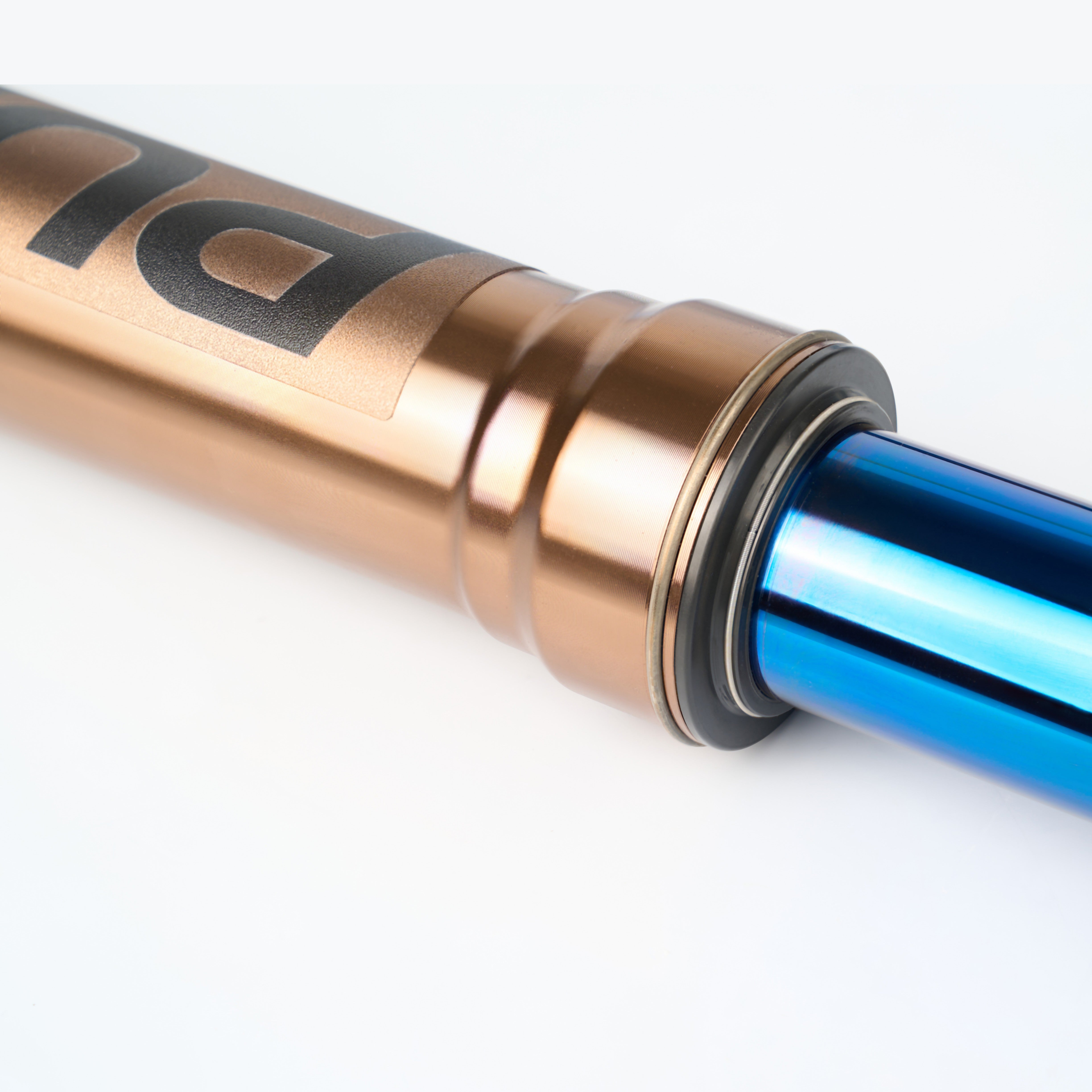

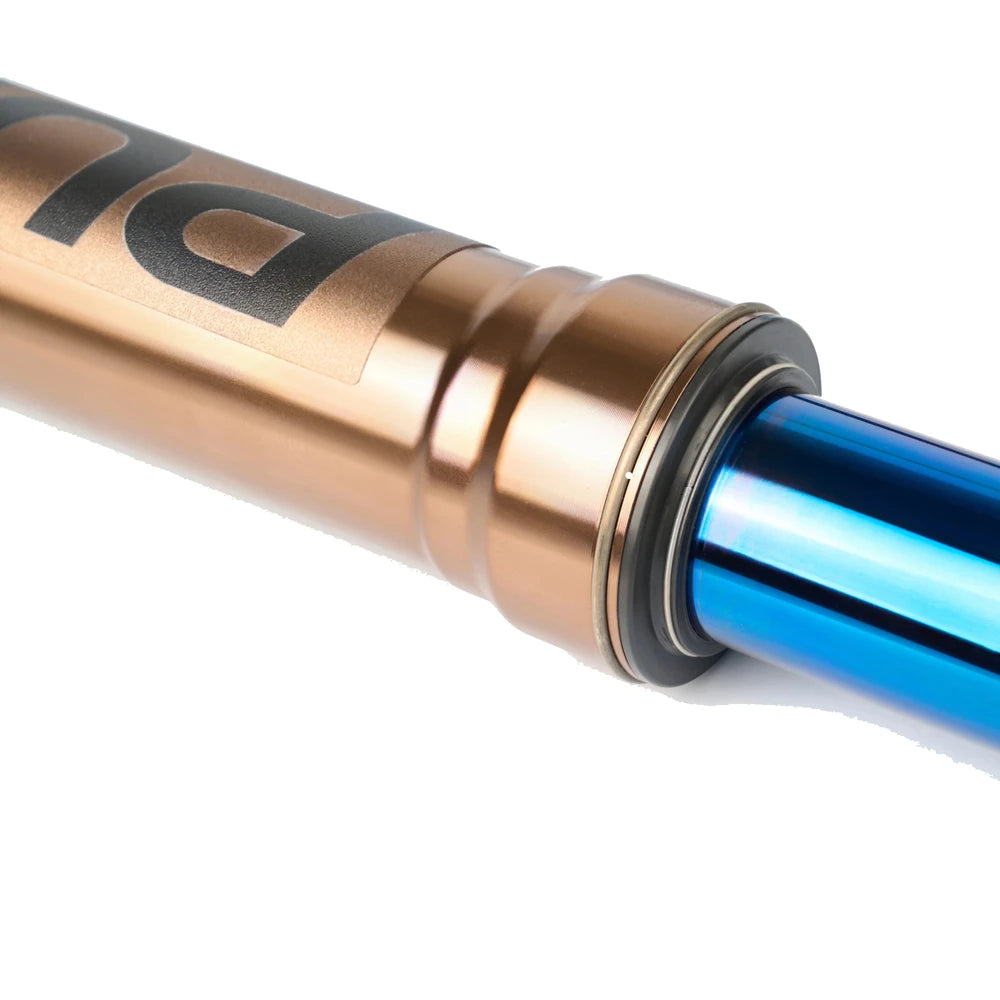

• Custom-designed oil and dust seals strike an optimal balance between sealing efficiency and low friction, ensuring consistent oil flow over extensive use.
• Advanced fluid dynamics provide a progressive, quiet, and controlled damping response.
• The link plate, refined through FEM analysis, guarantees high rigidity, fatigue durability, and weight-optimized strength.

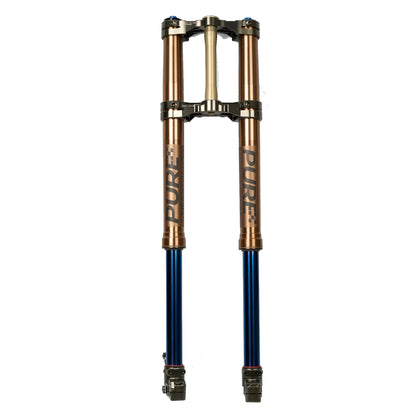

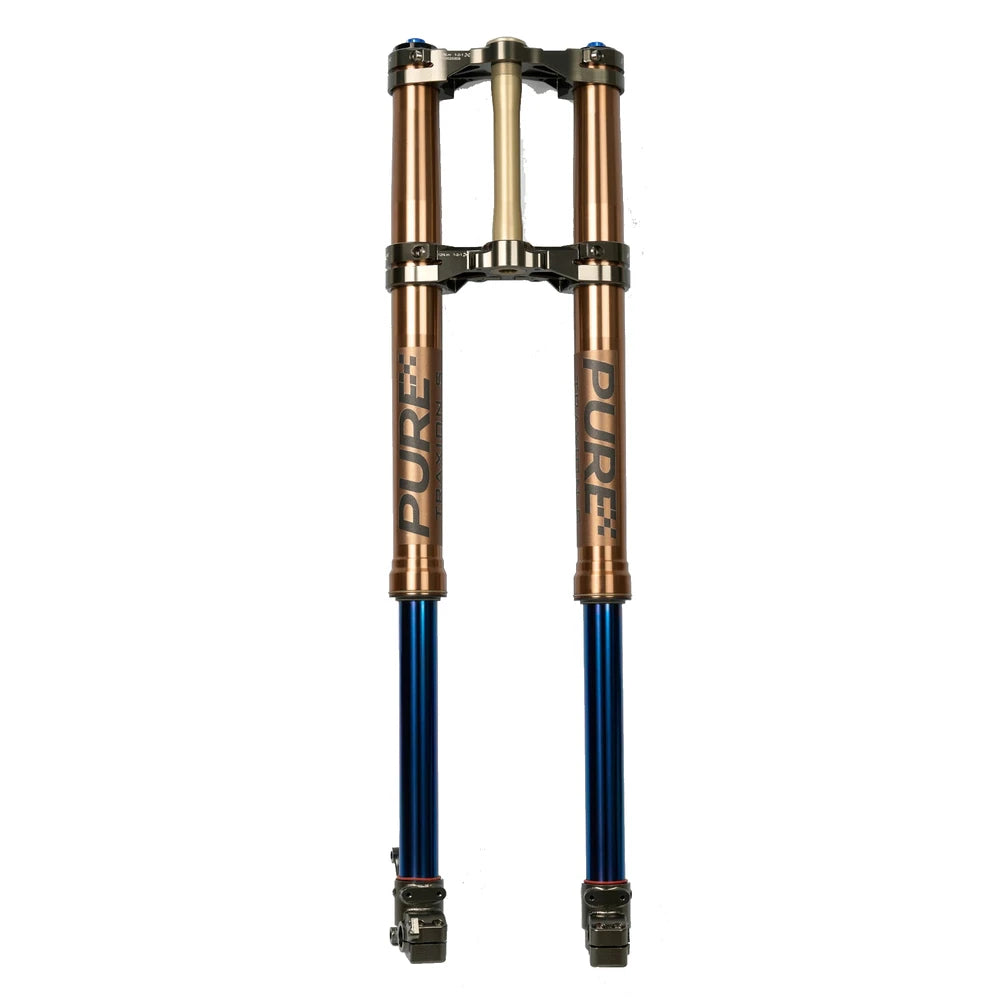

Designed for Surron Ultra Bee ！

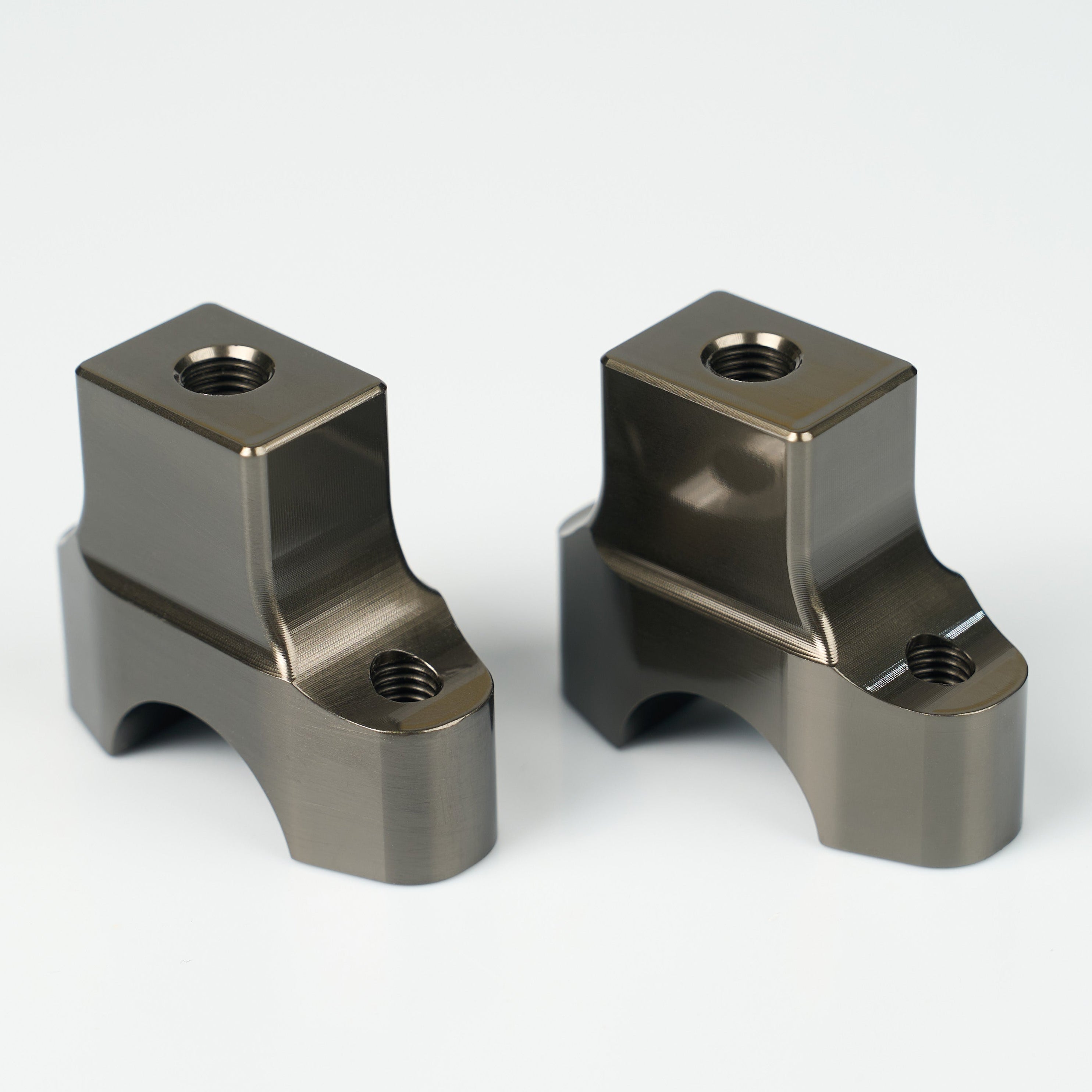

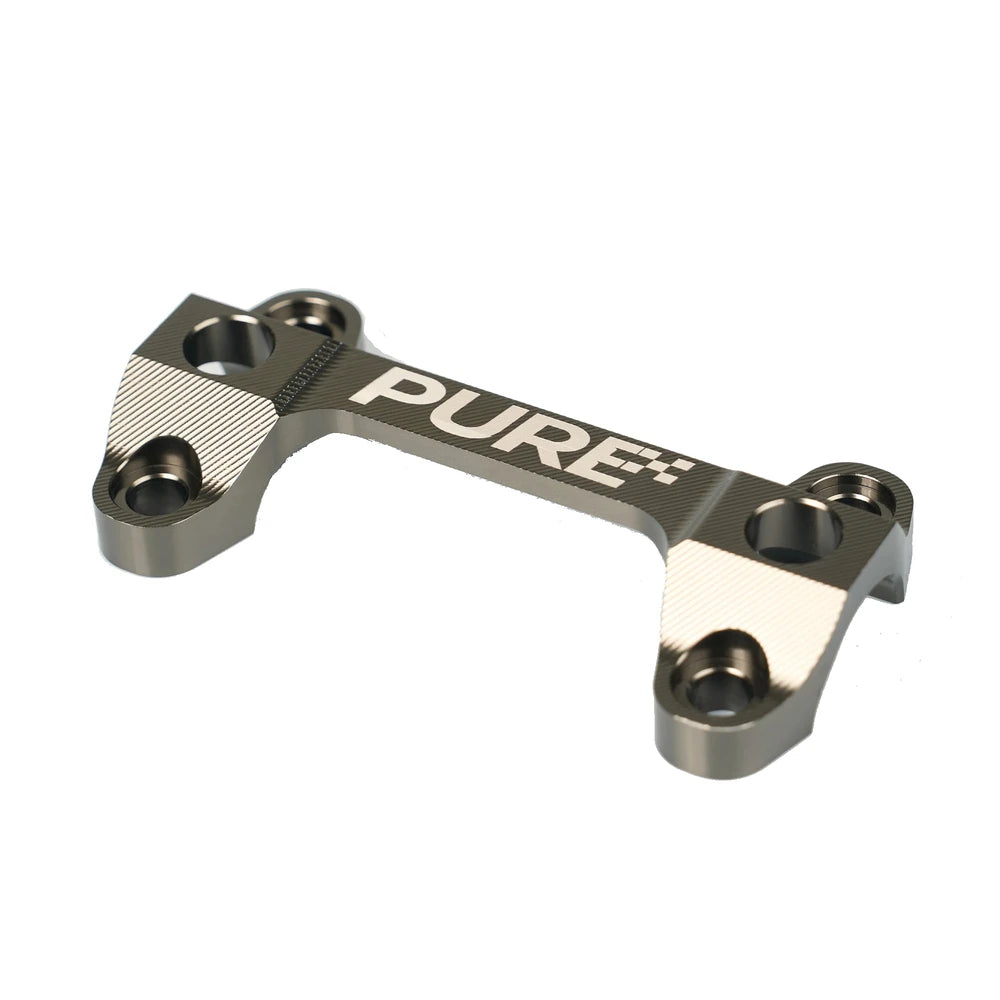

What's Included: Forks, CNC Crown and handlebar stem.

TECHNICAL SPECIFICATIONS:

NAME: TRAXION S

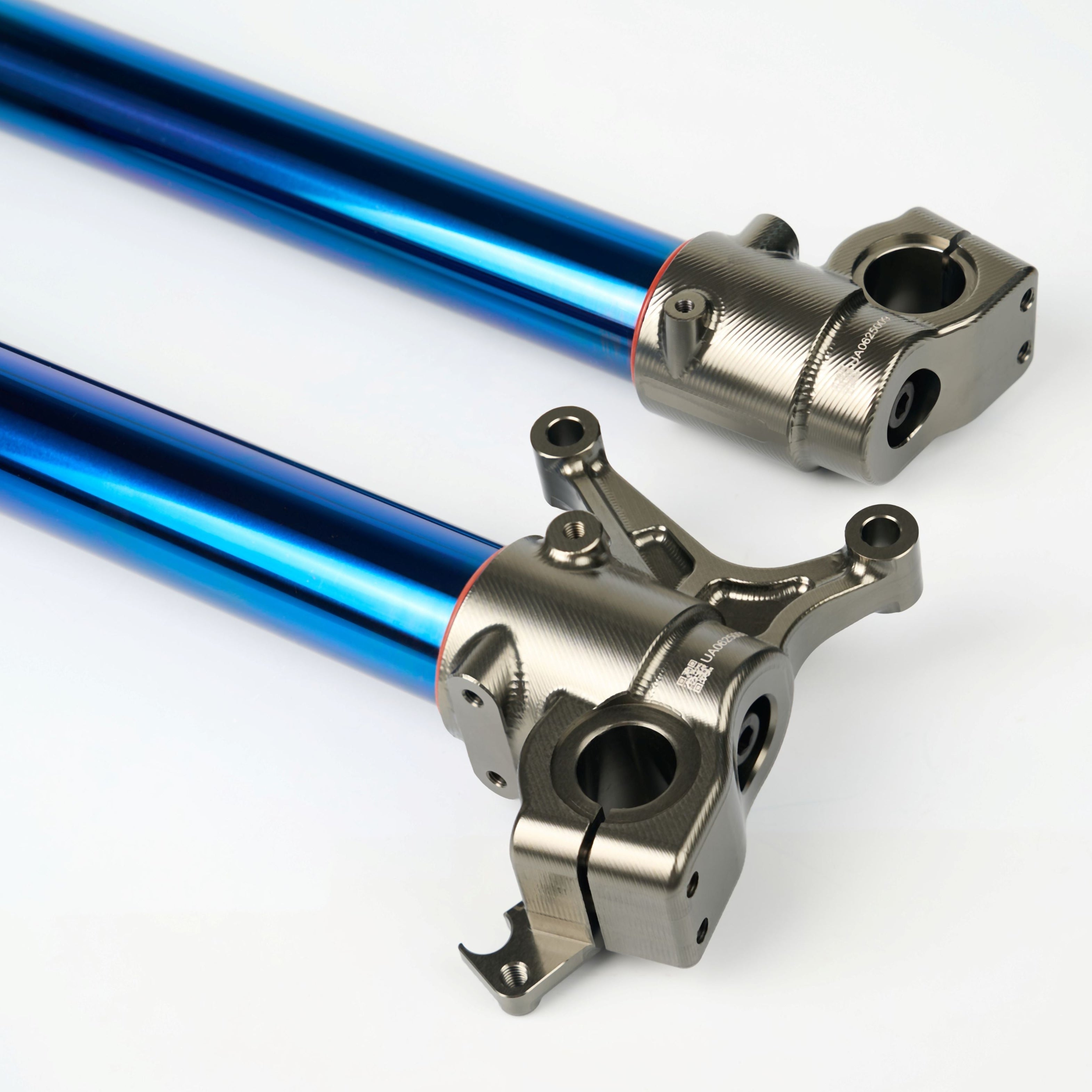

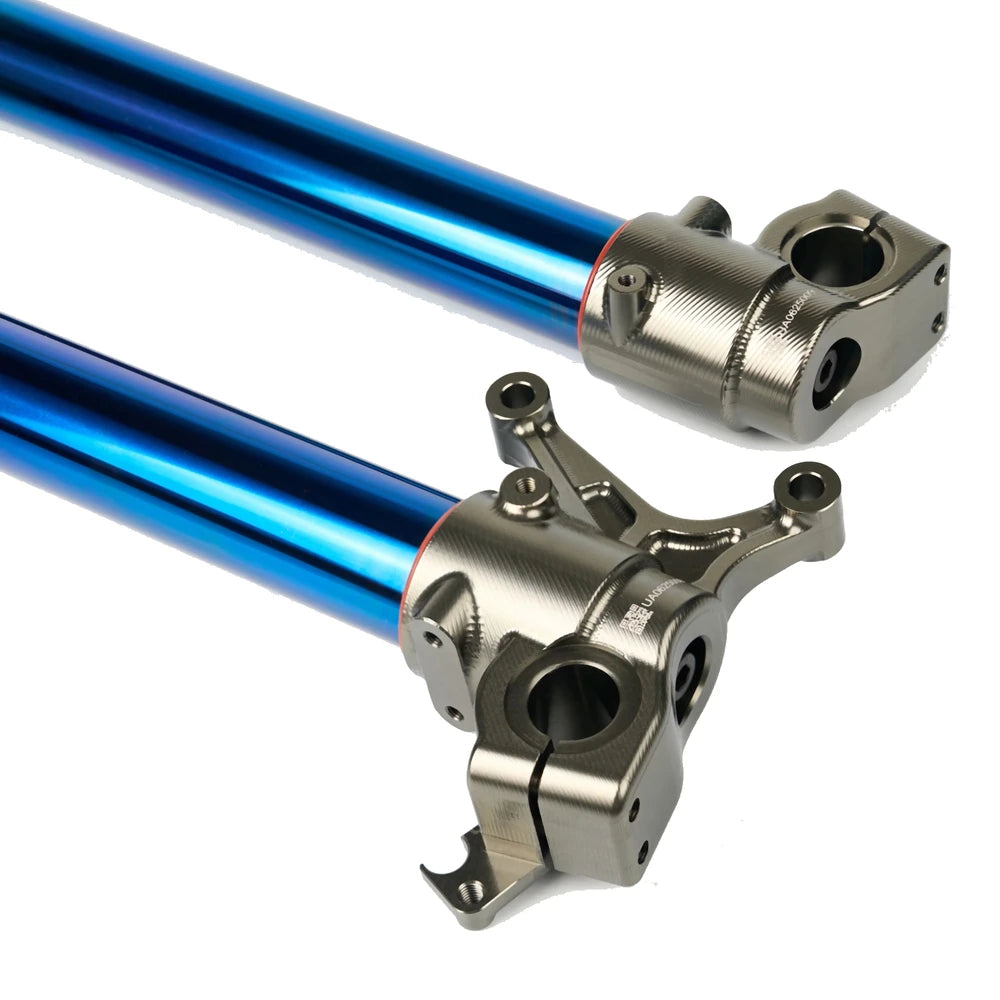

DROPOUTS: Surron Ultra Bee

TUBE DIAMETER: Inner 38mm/ Outer 50mm

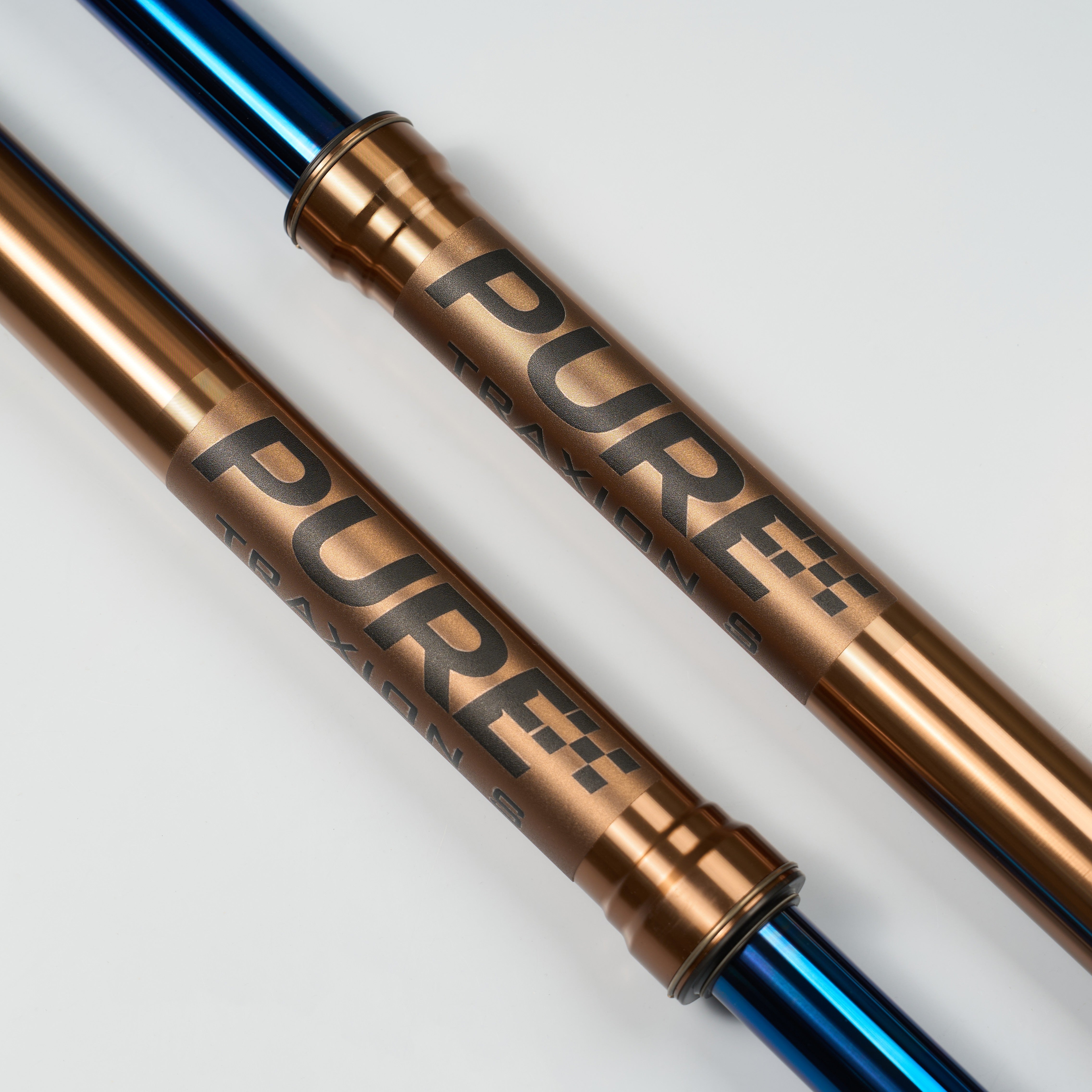

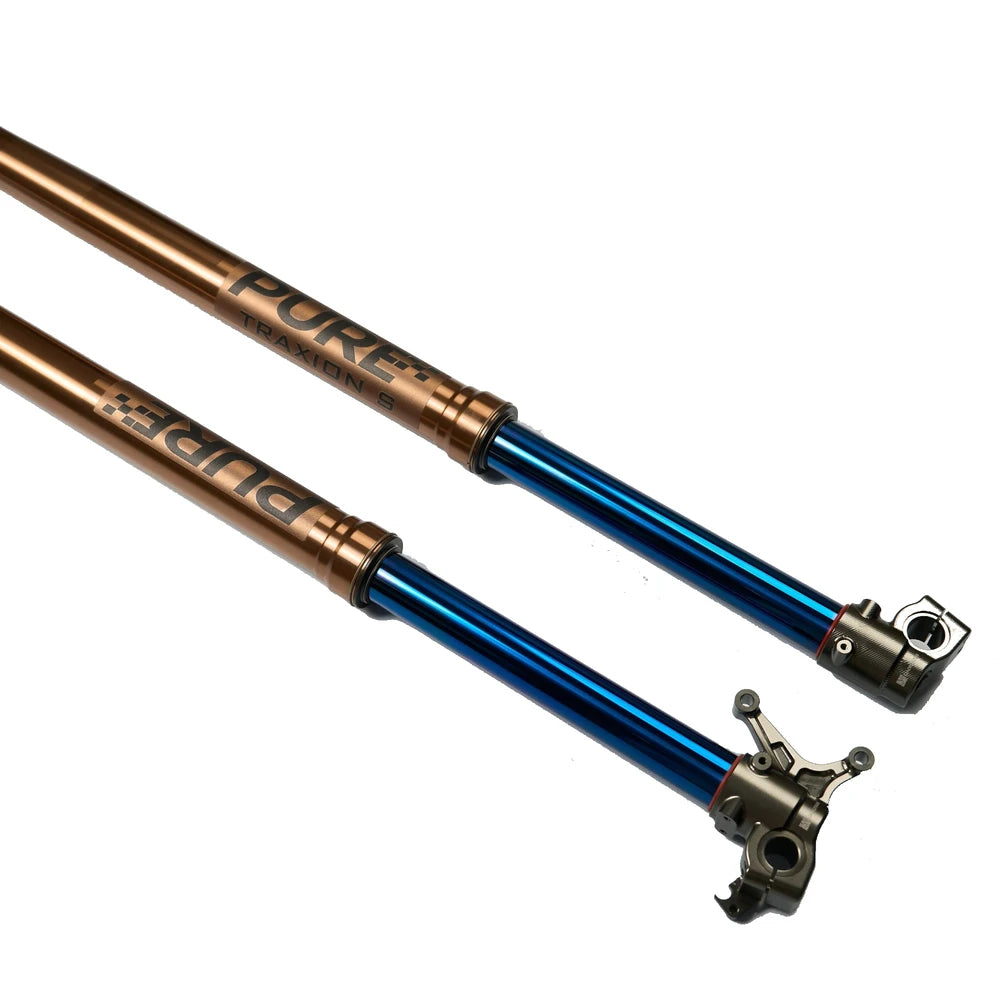

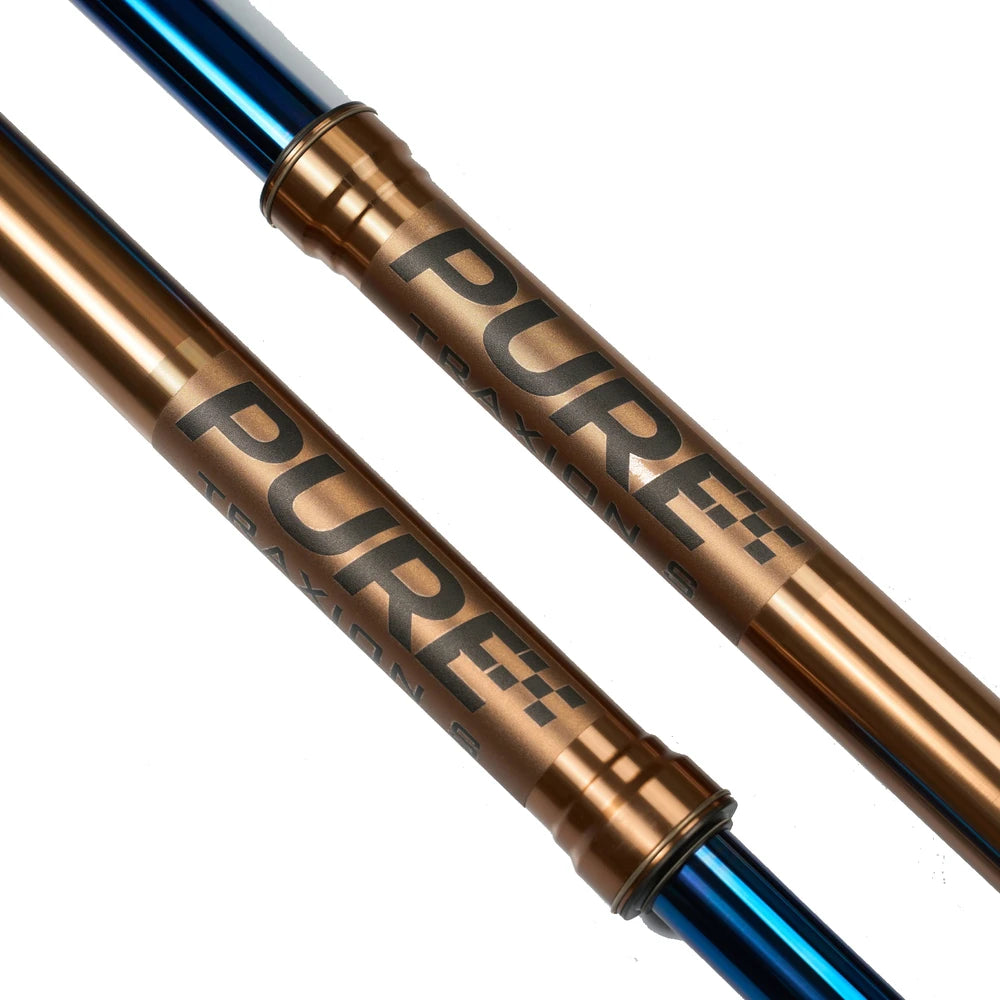

Stanchion:  Blue TiAlN Titanium Aluminium Nitride coated

TRAVEL: 260mm

EXTENDED LENGTH: 850mm

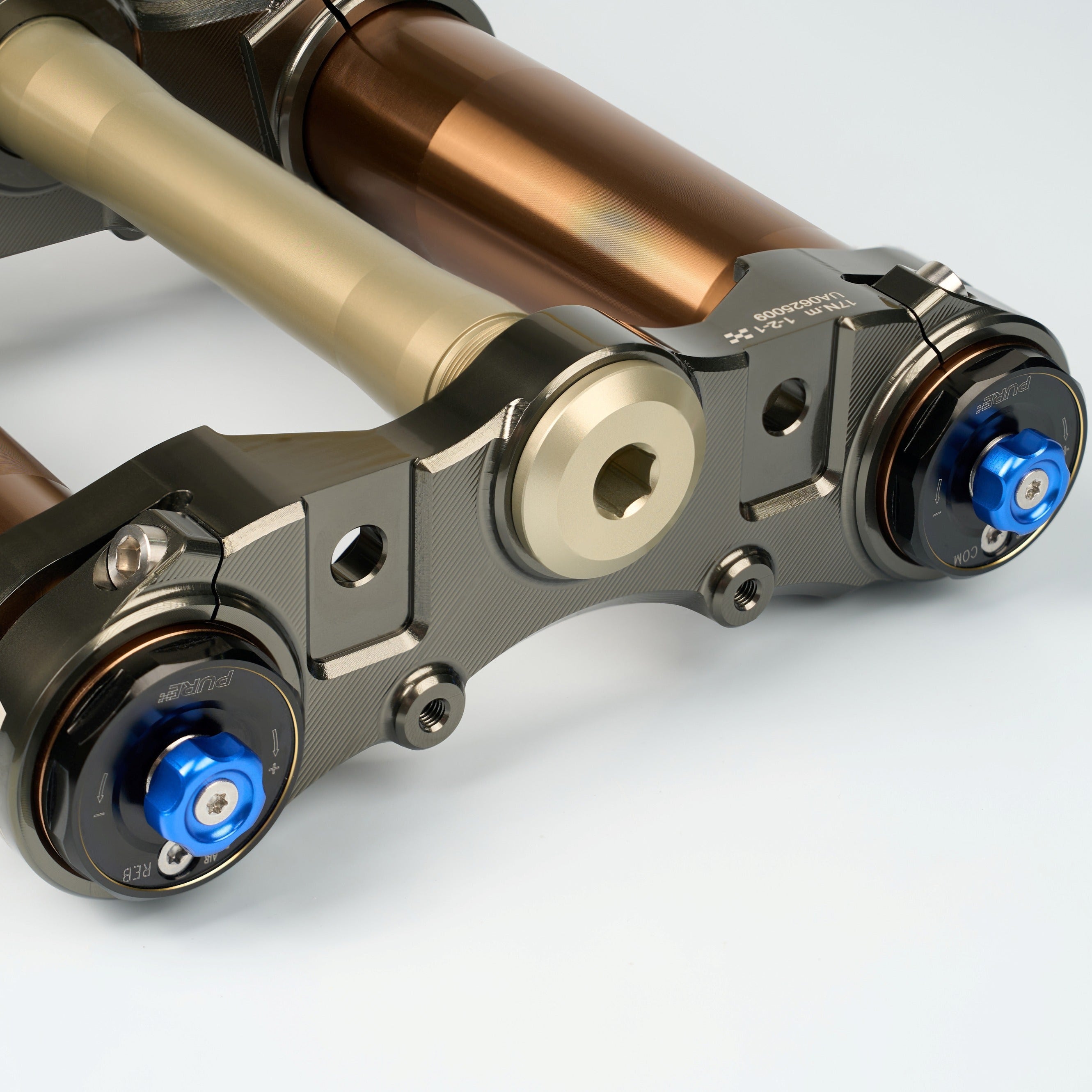

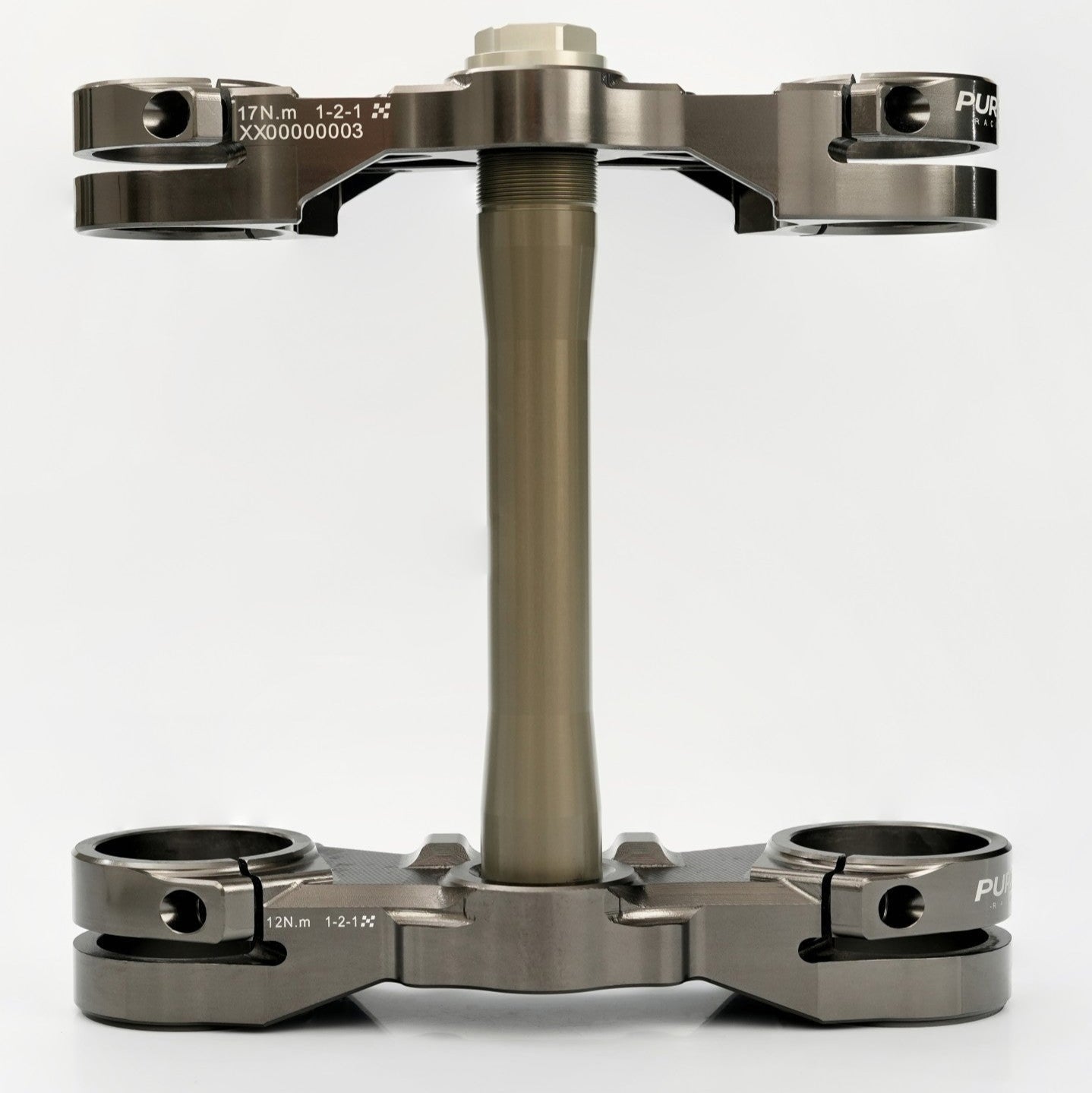

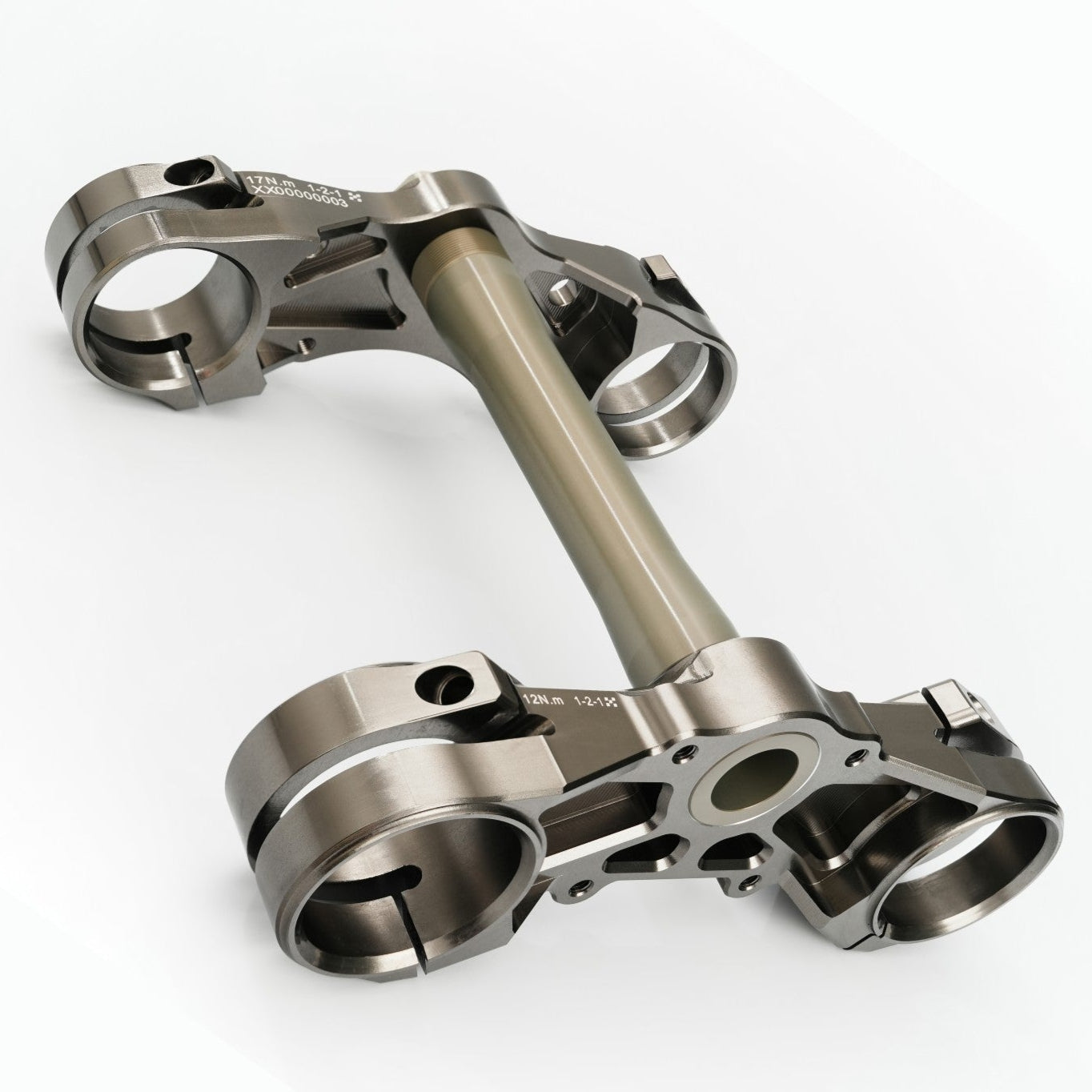

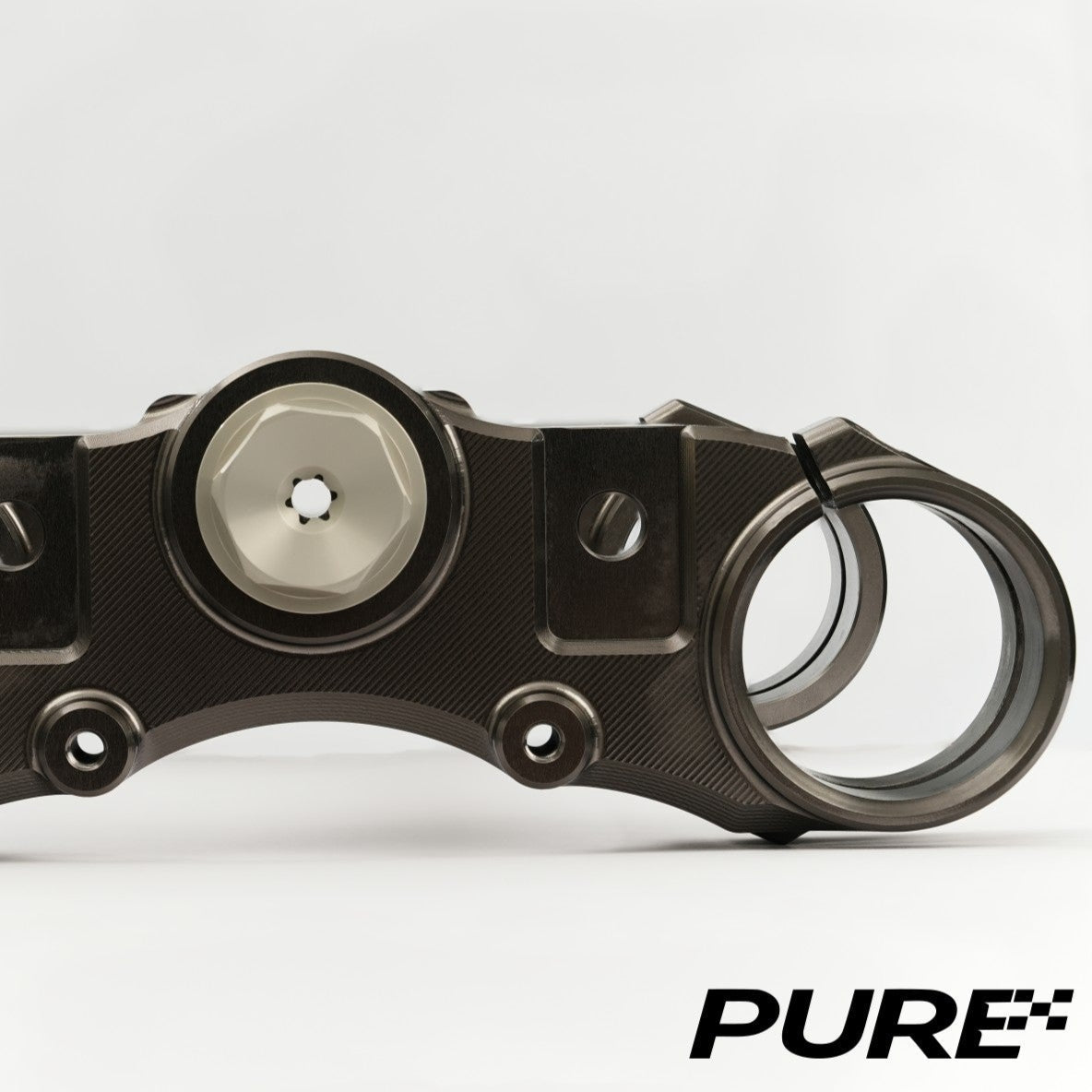

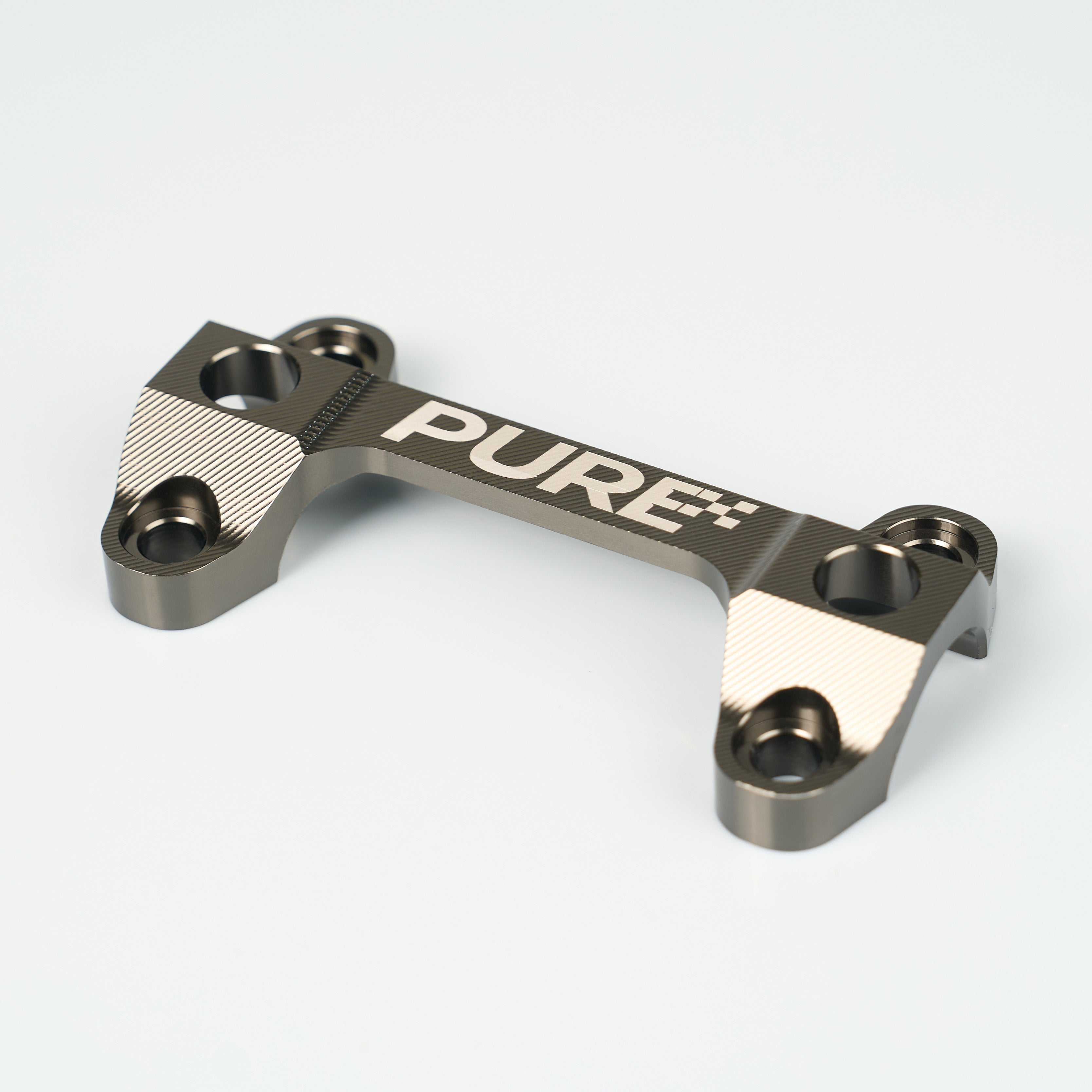

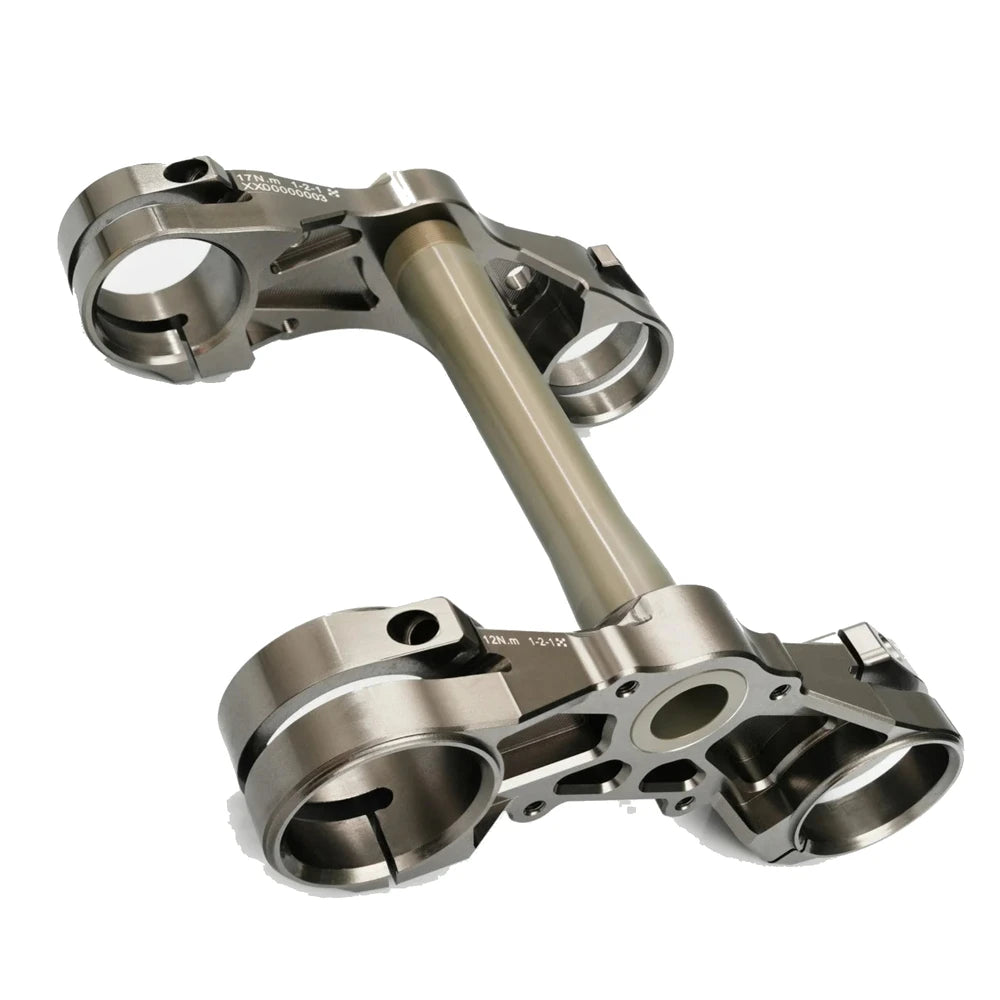

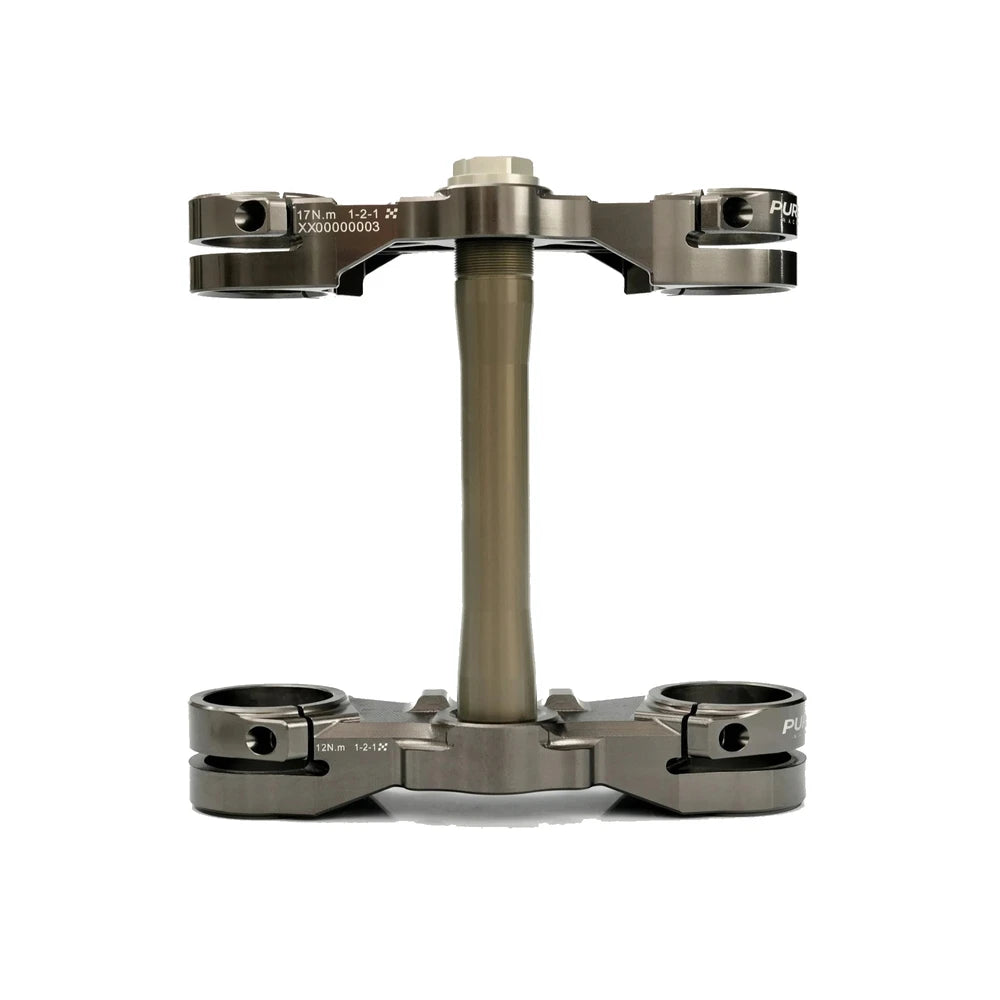

CROWN & STEM: Billet 7XXX aluminium, anodized coating

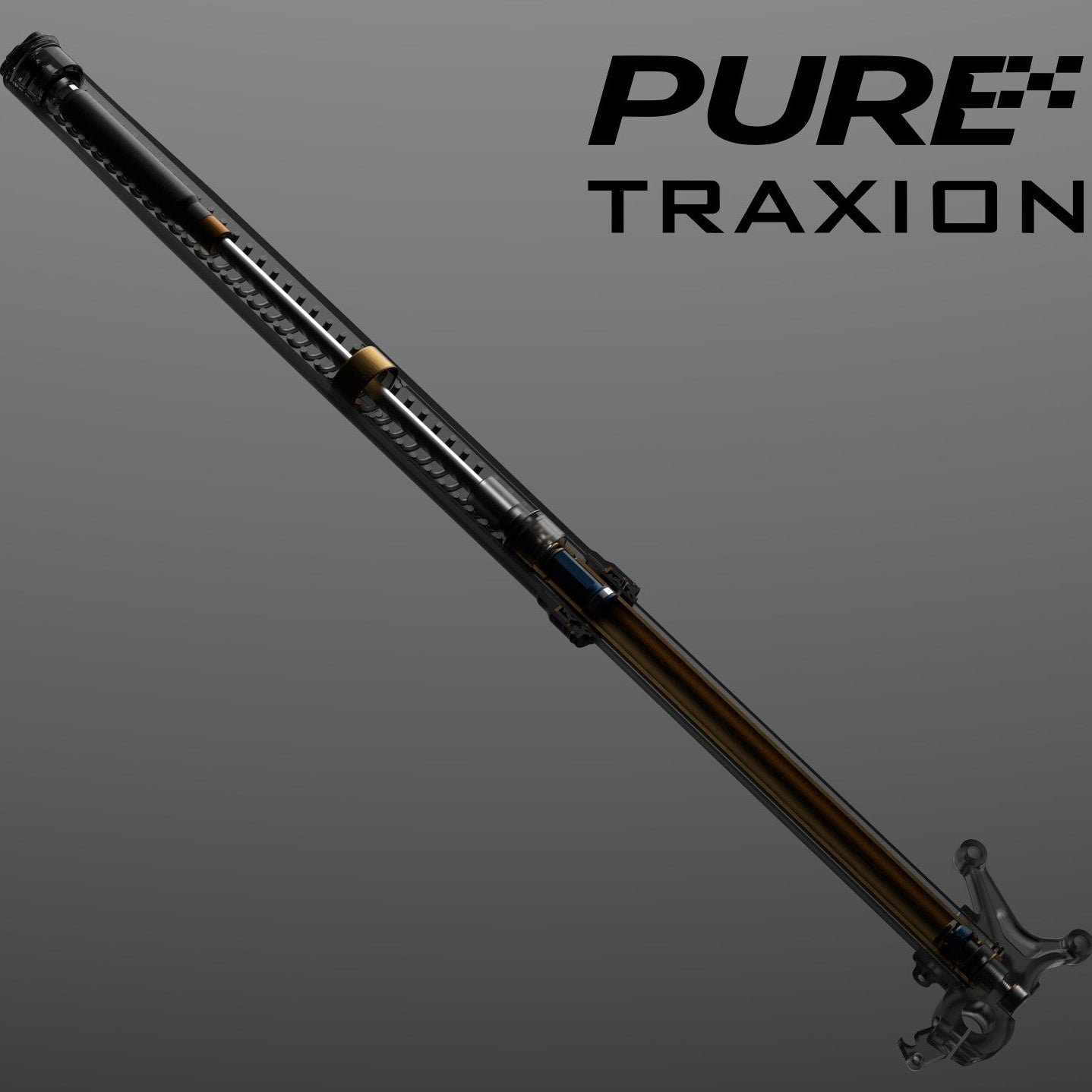

DAMPER: Dual sealed closed cartridges, dual-spring

RIDER WEIGHT OPTIONS: Light and Medium(TR)/Medium and Heavy (MX)

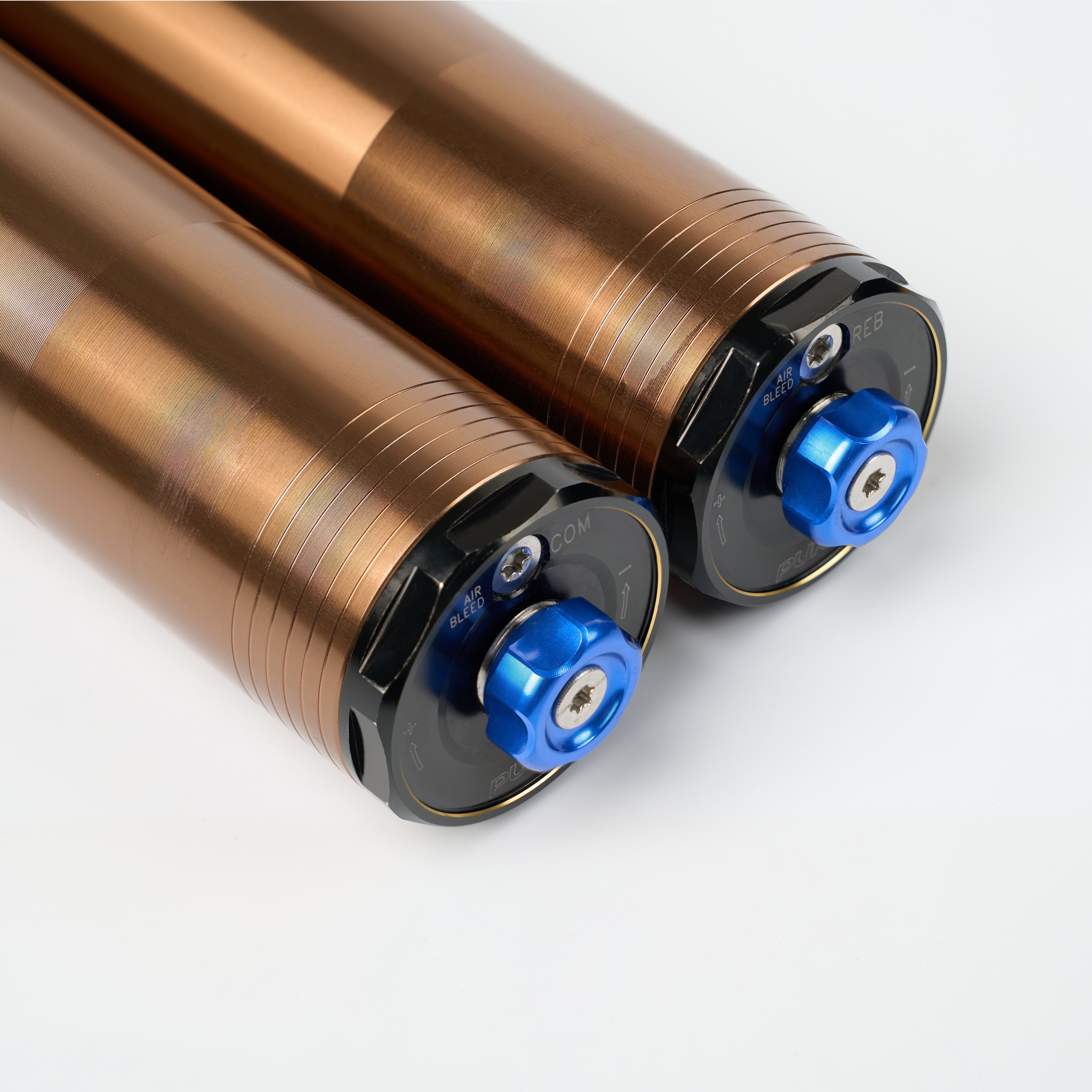

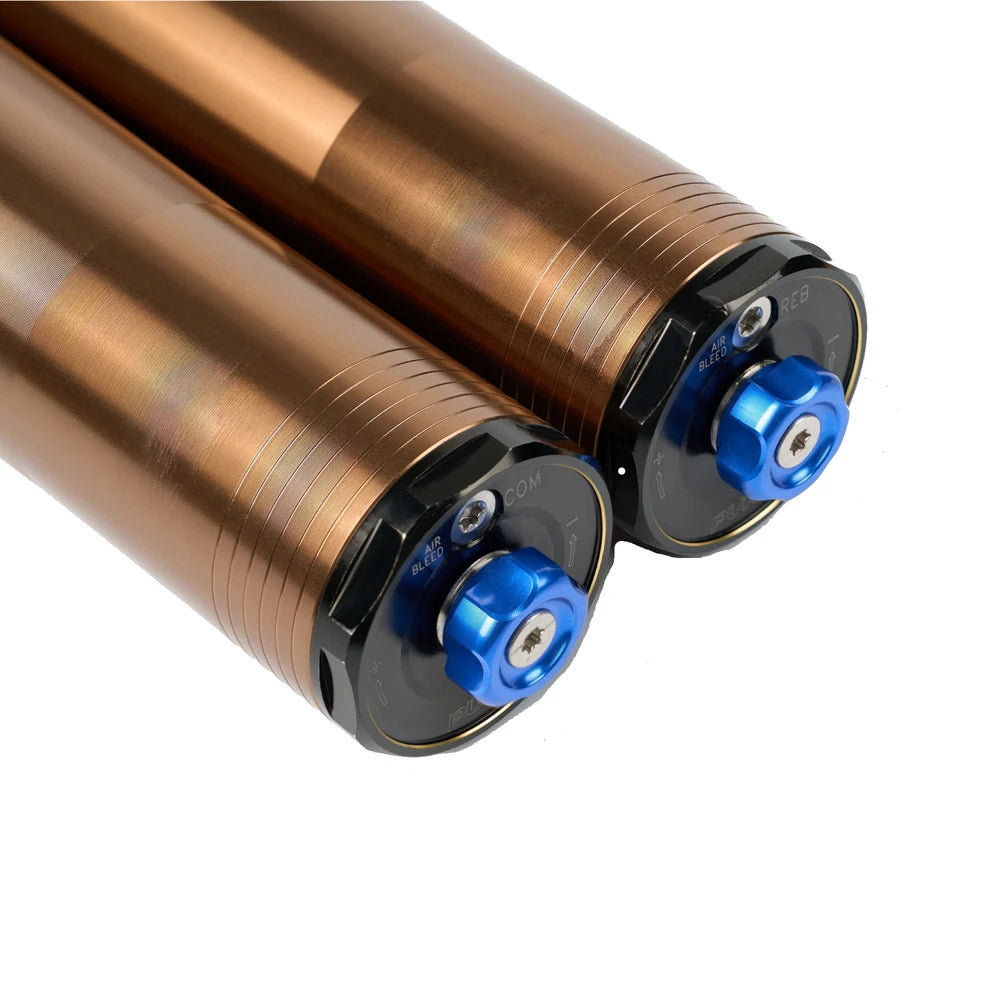

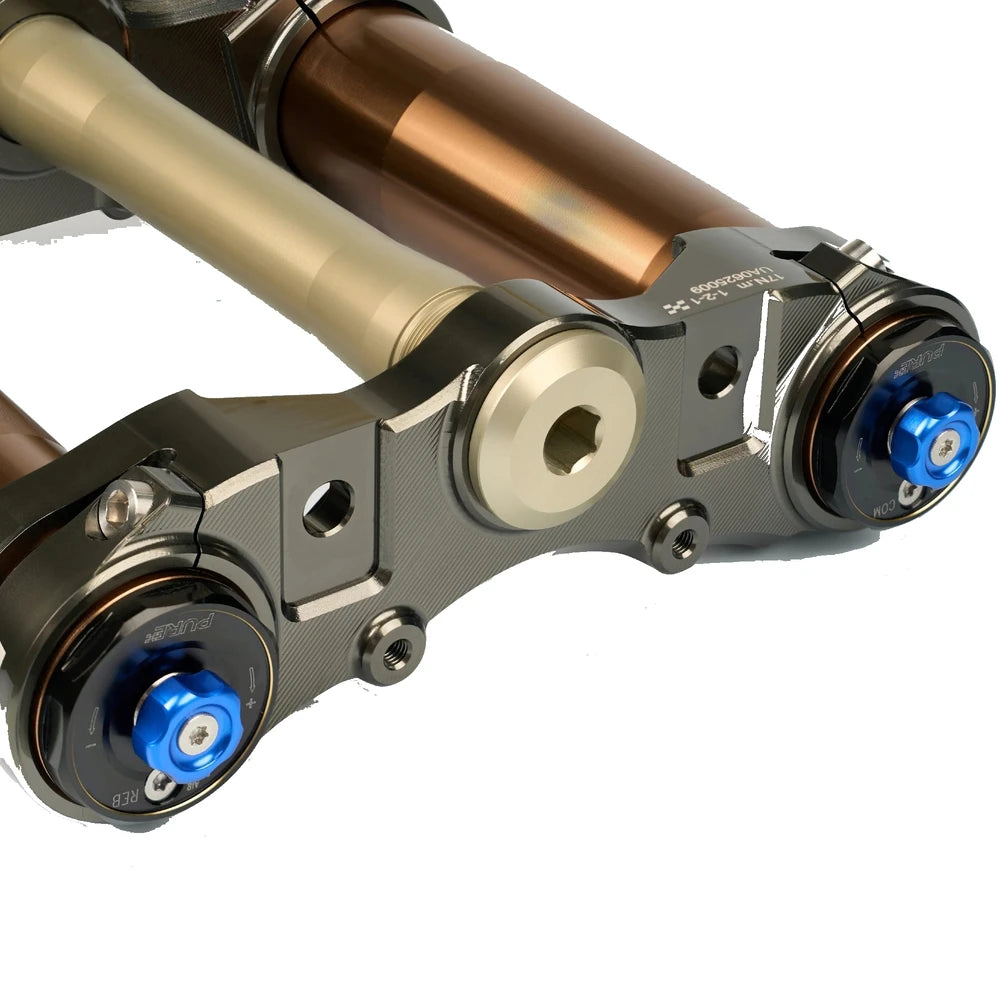

COMPRESSION DAMPING: 24-stage adjustable

REBOUND DAMPING: 24-stage adjustable
