37 mm Coil Performance, fits: Sur‑Ron Light Bee, Talaria XXX, MX3, MX4, MX5 & E‑Ride Pro SS / SR

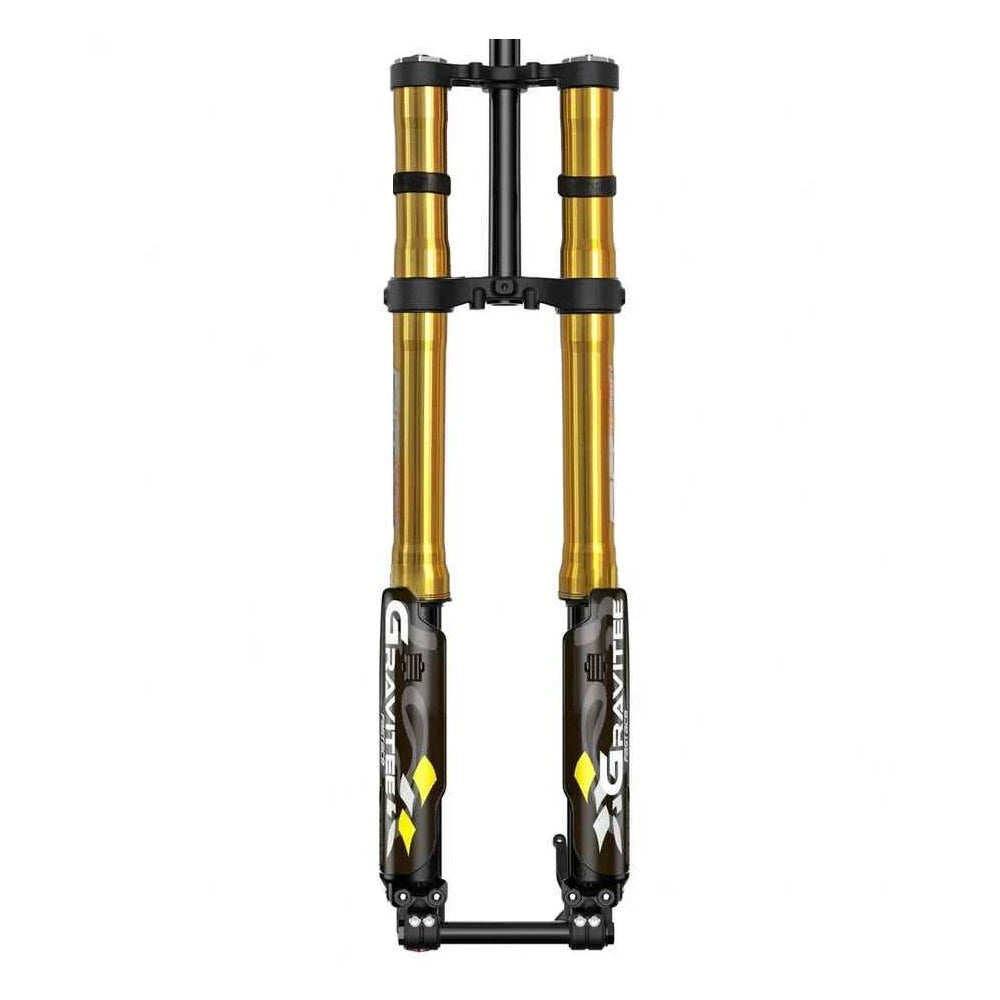

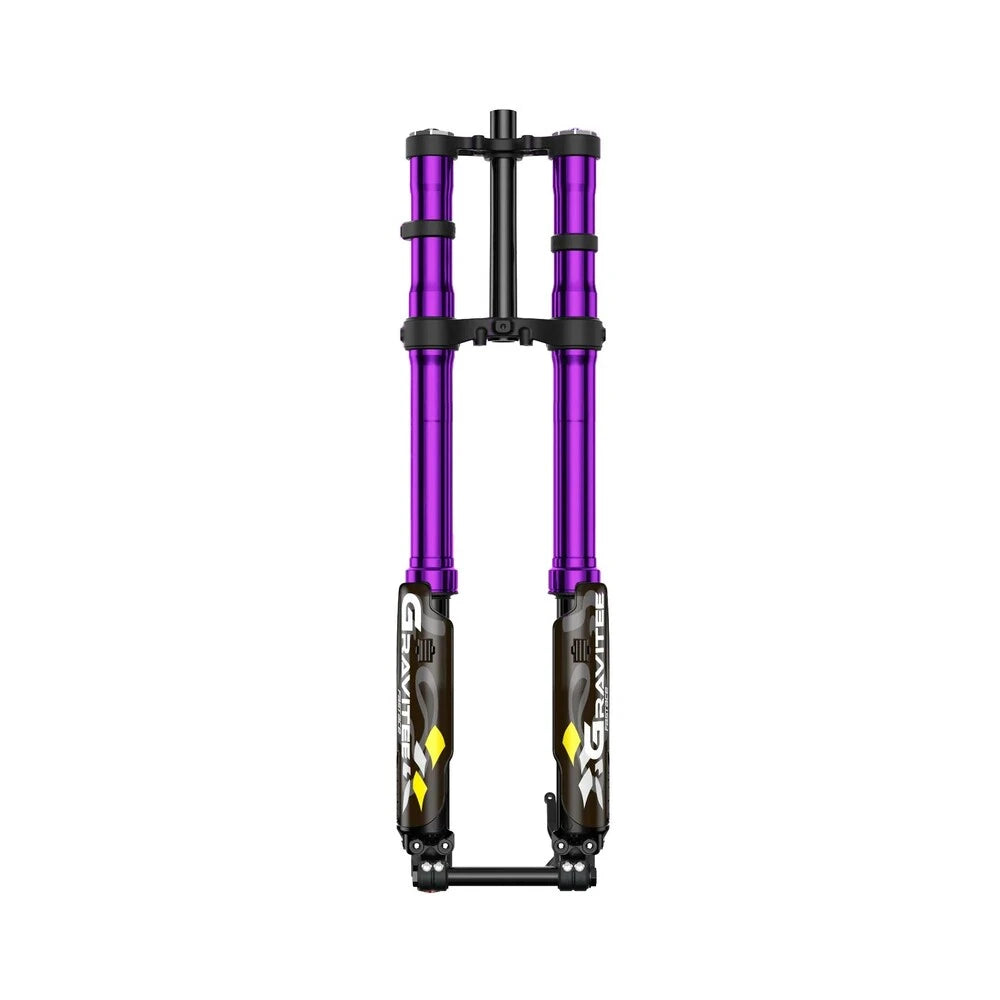

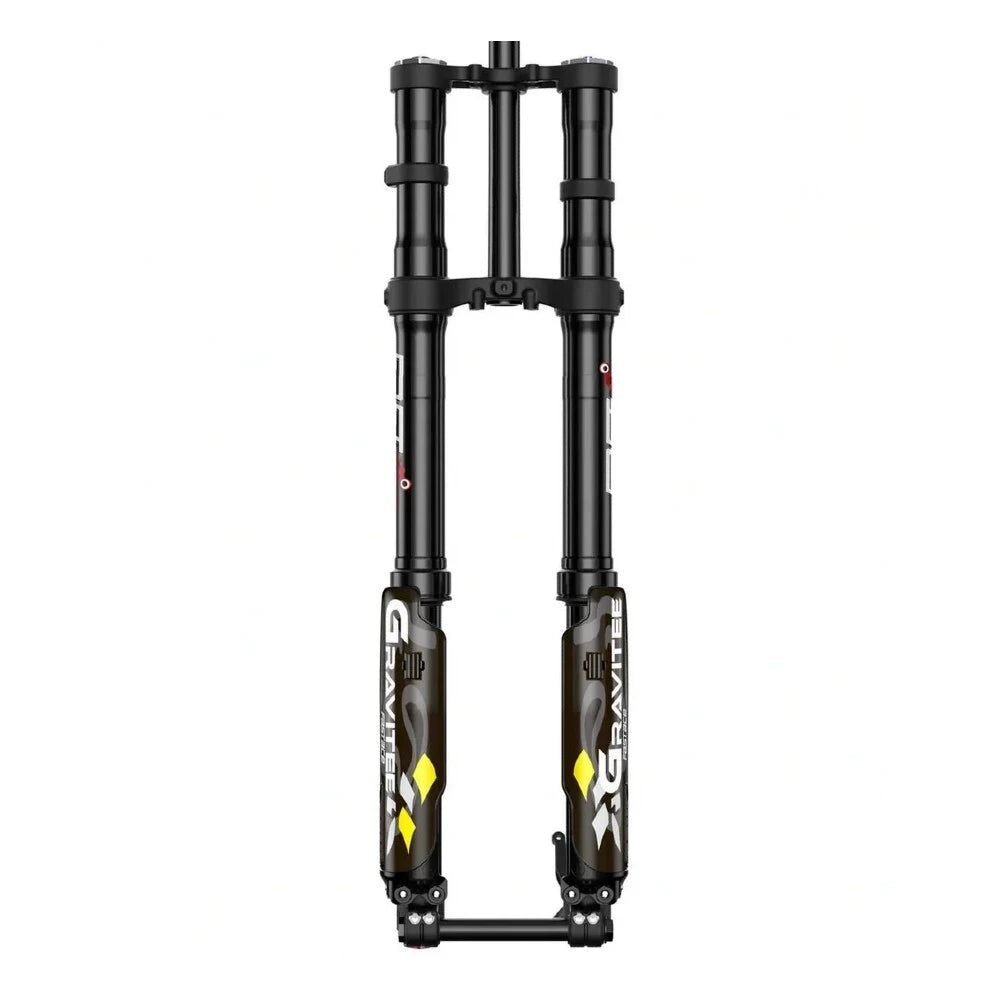

(Available in Black | Gold | Purple anodized stanchions)
200 mm of bottom‑out‑proof travel – forged crown and 37 mm stanchions soak up motocross‑size hits without flex.

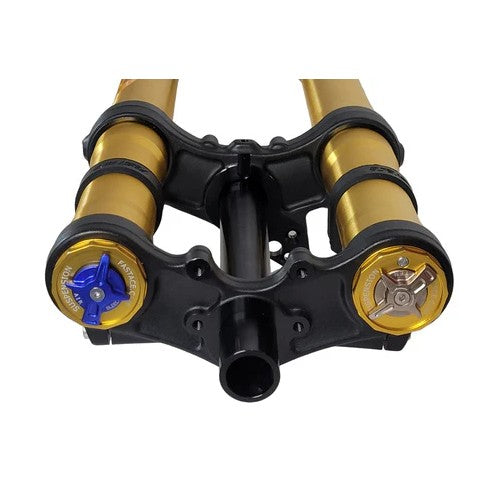

True double‑adjustable damping – 18‑click high‑speed & low‑speed compression + 18‑click rebound let you tune for whoops, berms, street, or skate‑park landings.
Pre‑installed 60 lb coil spring – perfect spring rate for most 160–210LB riders. swap in minutes for lighter/heavier coils.
Plug‑and‑play fitment – 1⅛ʺ steer tube, 20 × 110 mm Boost axle and 203 mm PM brake mount. Bolt straight onto Sur‑Ron Light Bee X, Talaria XXX, MX3, MX4, MX5 and E‑Ride Pro SS / SR Bikes.
Color‑matched style – choose stealth Black, factory‑race Gold or limited Purple anodizing to match your build theme.
*Real‑world tested sag range: 25–30 % at 190 lb rider weight.
| Spec | Detail |
|---|---|
| Stanchion Ø | 37 mm hard‑anodized 7075‑T6 |
| Travel | 200 mm (7.87ʺ) |
| Spring | 60LB Coil |
| Damping | HS/LS compression, rebound |
| Axle | 20 mm thru‑axle, 110 mm Boost |
| Steer Tube | 1⅛ʺ straight – Sur‑Ron/Talaria OEM length |
| Brake mount | Post‑mount 203mm (Use this adapter for 220MM Rotors) |
| Offset | 46 mm |
| Weight | 8.1 lb (3.7 kg) w/ spring |
Unlock an extra inch of bar height and sharpen steering with our purpose‑built DropCrown triple clamp. Machined from 6061‑T6, it lowers the fork legs without trimming the steer tube. Perfect for tall riders or super‑moto conversions.
Remove front wheel & stock fork.
Slide AHX12RV into head‑tube, torque stem bolts to 9 Nm.
Re‑use OEM brake caliper or upgrade to 220mm rotor.
Set sag to ~25 % (see guide).
Dial rebound first, then LS/HS compression.
No cutting, no special tools just grease the steer tube bearings and ride!
